Surface protection in straightening is an engineering decision, not simply adding a soft pad. The workpiece material, section, finish, coating, lubrication, contact geometry, force path, tooling cleanliness and wear condition can each influence marks, flattening, local damage and the geometry signal used to control the process. A contact method that is acceptable for one bar, wire or shaft may be unacceptable for a coated tube, precision journal, profile corner or finished tool.
This guide explains a validation framework. It does not claim that StraighteningTech has a particular roll material, coating, groove form, pressure limit or workpiece surface capability. Those items require evidence from the actual tooling and representative samples.

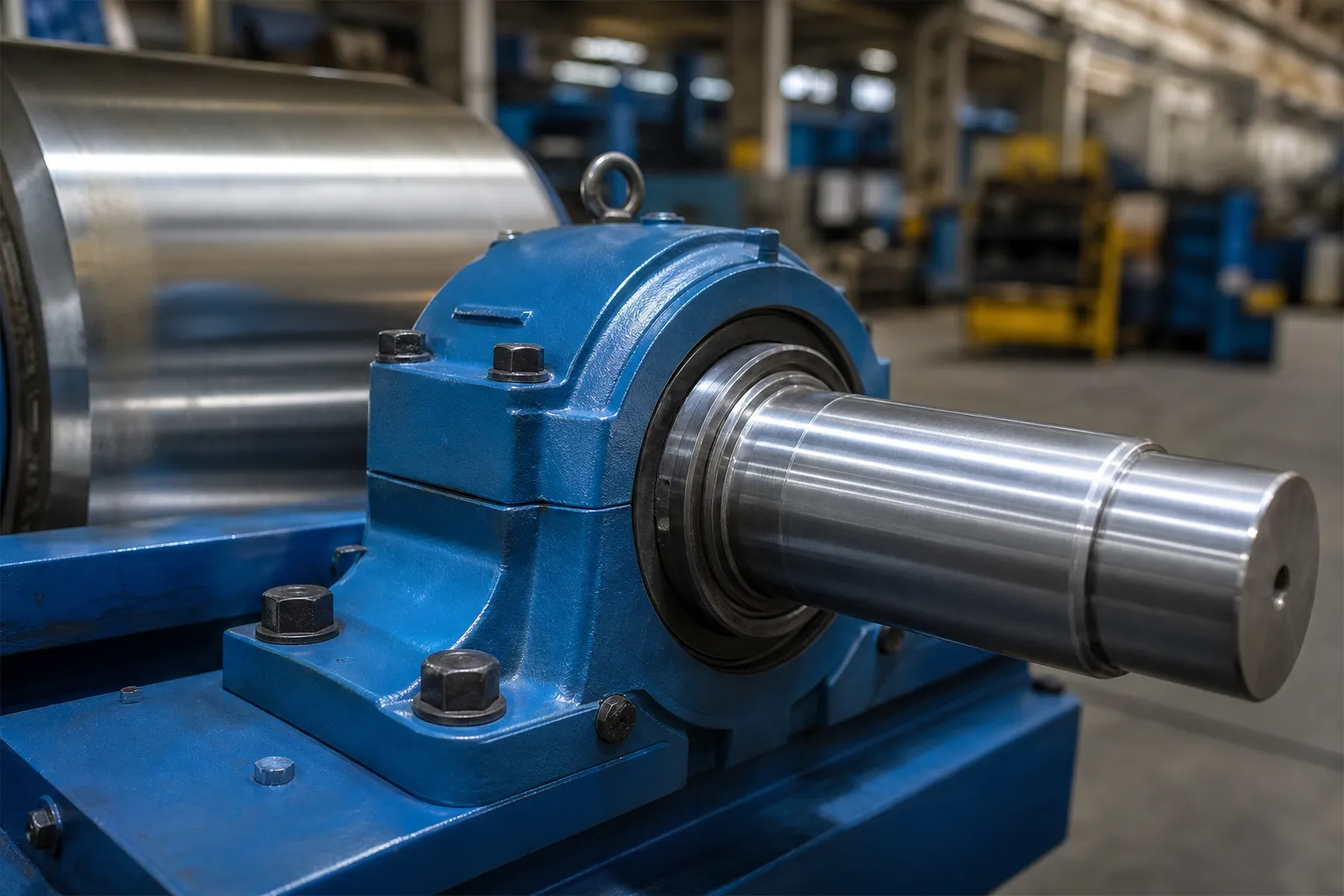

*Engineering concept illustration. It shows coating protection as a workpiece-specific validation issue, not evidence of an approved universal groove or contact material.*
Before a trial, document the tool identity, material/finish where known, contact geometry, setup location, alignment, cleaning method, lubrication condition where applicable, inspection standard and replacement/wear threshold.
Where Marks Actually Come From
Surface damage in straightening has a short list of physical causes, and naming them is the first step to controlling them. Normal contact pressure between tooling and workpiece, multiplied by any relative sliding, produces the classic witness line. Debris trapped in the contact zone — scale, chips, grinding swarf — converts ordinary pressure into indentation and scratching, which is why cleanliness is a process variable rather than housekeeping. A contact geometry that concentrates load on an edge or a radius that is too small for the section raises local stress far above what the average force suggests. And beyond a threshold specific to each material and heat-treatment state, local plastic flattening of asperities or of the section itself changes surface geometry permanently. A bruised corner on a profile or a flattened zone on a thin wall is a geometry defect, not only a cosmetic one.
Every one of those causes has a countermeasure that lives in tooling design and process discipline: distribute force through larger or conforming contact areas, eliminate sliding by aligning the correction stroke with the support plane, exclude debris through scheduled cleaning and covers, and keep forces within the range the section can carry elastically. None of them is a pad. Soft inserts are one option among several, and they bring their own trade-offs — softer contact materials wear faster, deform under sustained correction cycles, and can change the effective support geometry as they age, which quietly alters the correction result.
Tooling Material and Contact Geometry Decisions
Selecting contact tooling is a three-way trade between surface protection, dimensional stability of the tooling itself, and wear life. Hardened steel tooling holds its groove geometry through long runs and keeps the measurement-and-correction loop repeatable, but it concentrates contact stress and tolerates no debris. Softer non-ferrous alloys and polymer inserts lower local stress and forgive small particles, at the cost of faster wear and periodic requalification of the contact form. Conformal contact — a groove or saddle matched to the section radius — spreads load compared with a flat anvil face, and generous radii on every edge that can touch the workpiece remove the stress concentrations that cause bruising even at moderate force.
Two disciplines make those choices verifiable instead of habitual. First, each tooling element needs an identity: material, contact form, the workpiece zones it is approved for, and a wear limit stated as a measurable criterion — profile deviation of the groove, visible embedding, dimensional change of the insert — not as a judgment call. Second, a change in any contact component is a process change: the first parts after a roll change, an insert renewal or a re-ground anvil run under the same sample-test evidence rules as a new setup, because the surface and geometry result must be reconfirmed, not assumed. These are the same change-control habits that machine FAT checklists enforce at acceptance, applied daily.
Keep Tooling Clean and Control Wear
Embedded debris, worn grooves, damaged rollers, misalignment and inconsistent adjustment can produce marks or misleading geometry. A protection plan should specify inspection frequency, cleaning method, wear criteria, tool change control and a requalification check after a changed contact component. It should not rely on a visual statement that tooling “looks fine.”

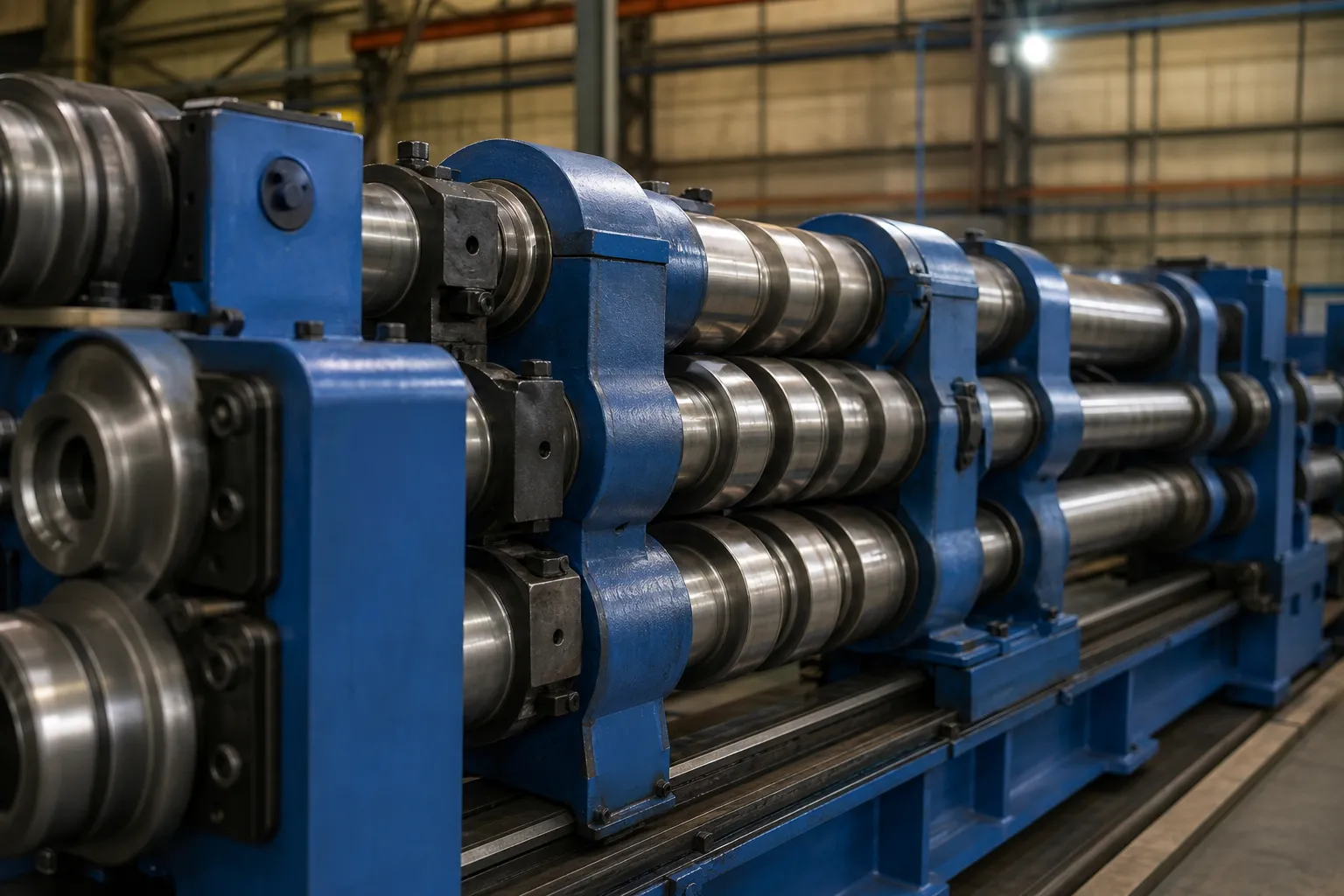

*Engineering concept illustration. It depicts protected contact as an engineering requirement; it does not establish a local roller material, pressure limit or surface-quality guarantee.*
Validate Surface and Geometry Together
Surface protection cannot be validated only by checking for visible scratches. The sample test must also confirm the intended geometry under the approved datum and released state. A route that protects the surface but cannot meet the required geometry is not acceptable; a route that meets geometry but damages a functional coating is not acceptable.
| Validation item | Evidence required |
|---|---|
| Contact location and reaction path | Tooling/setup record linked to drawing zones |
| Surface condition | Agreed inspection method before and after correction |
| Geometry result | Released-state readings on the approved datum/gauge |
| Tooling repeatability | Repeat setup, cleanliness and wear check |
| Change control | Identification and revalidation after roll/groove/tool change |
Use straightening sample test and acceptance to define the evidence pack, and press versus roller straightening to determine whether a different correction method should be evaluated.
The Force Path Matters More Than the Pad
The most common surface-protection failure is treating contact risk as a material question while ignoring load path. Where the supports sit, where the press point acts, and how those locations relate to the stiff features of the section determine how much force the operation needs in the first place. A correction stroke applied mid-span between widely spaced supports demands far more force — and leaves far deeper witness marks — than the same correction applied with supports closer to the correction point, even with identical tooling. Aligning the press axis with the support plane so the part does not slide or rotate under load removes the sliding component of damage entirely. On sections with asymmetric stiffness, pressing in the wrong direction loads a thin wall in bending and creates local dents that no insert material can prevent.
This is why surface protection is designed jointly with the correction plan, not bolted on afterward. The error map that drives the correction points should also mark the zones where contact is forbidden — finished journals, coating on sealing surfaces, polished flanks — and the tooling layout should place supports and press points where the section can carry the load. When those two requirements conflict, that is precisely the signal to escalate to the alternative routes discussed below, following the disposition logic used when NOK parts are sorted and reworked.
Surface Classes and Their Sensitivity
Not all surfaces need the same level of protection, and treating them identically either wastes effort or ruins parts. The table below groups workpiece surfaces by their sensitivity drivers and the validation focus each class demands. It is a planning aid for the sample test, not a substitute for drawing requirements.
| Surface class | Sensitivity driver | Validation focus |
|---|---|---|
| Ground or turned journals | Dimensional and form tolerance on functional diameters | Witness depth against tolerance; geometry re-check at the journal |
| Plated or coated surfaces | Coating integrity; cracking or adhesion under local stress | Agreed coating inspection before and after correction |
| Polished flanks and edges | Cosmetic and functional roughness levels | Defined finish comparison method, not unaided visual judgment |
| Soft non-ferrous sections | Low hardness; risk of permanent flattening | Contact-area limits; section form re-measurement |
| Thin-wall sections | Local denting and ovalization from concentrated load | Support placement under stiff zones; roundness checks after correction |
| Functional edges on tools | Cutting geometry and edge preparation | Edge condition inspection; correction only in non-functional zones |
Cutting-tool shanks and flutes are the extreme case of the last row, which is why gun drill and deep-hole drill straightening treats contact-zone protection as a first-order process input alongside datum selection. The same hierarchy — classify the surface, define the inspection, prove the route on samples — scales down to ordinary bar work.
When Surface Risk Requires a Different Route
If the available contact zones cannot preserve the required surface or section integrity, the correct decision may be a different tool, a different manufacturing stage, a different correction method, additional allowance, a non-contact measurement strategy, or a HOLD pending engineering review. Do not force a part through an unvalidated route to meet a production target. Welded liquid cooling manifolds are one workpiece family where contact-zone risk must be reviewed before any press cycle.
For thin-wall and coating boundaries, see thin-wall hollow shaft straightening and contact versus non-contact straightness measurement.
FAQ
Do soft pads prevent all surface damage?
No. Contact geometry, force path, debris, wear, alignment and the workpiece surface all need validation.
Can a roll groove be reused for every section?
No. Section geometry, wall condition, surface requirement and reaction path determine whether a groove is suitable.
Is visual inspection alone sufficient?
No. The process must also demonstrate released-state geometry and the agreed surface/feature acceptance method.
Which surface classes need protection most?
Plated or coated surfaces, polished flanks, soft non-ferrous sections, thin walls and functional edges on cutting tools. Each class has a different failure mode — coating cracking, flattening, denting, edge damage — so the inspection method has to match the failure mode, and the sample test must prove both surface and released-state geometry.
How is tooling wear turned into an objective criterion?
By writing a measurable limit into the tooling record before production starts: groove profile deviation from the original form, dimensional change of inserts, embedded debris that cleaning cannot remove, or a counted number of correction cycles. When the limit is reached, the tooling element is replaced or reconditioned and the first parts after the change are requalified under sample-test rules.
Does support placement really affect surface damage?
Yes, strongly. Support span and press-point location determine the force the operation needs, and edge radii determine how that force concentrates. Moving supports closer to the correction zone and keeping every contact edge radiused often reduces witness severity more than any change of insert material, because it attacks force and geometry instead of only the contact pair.

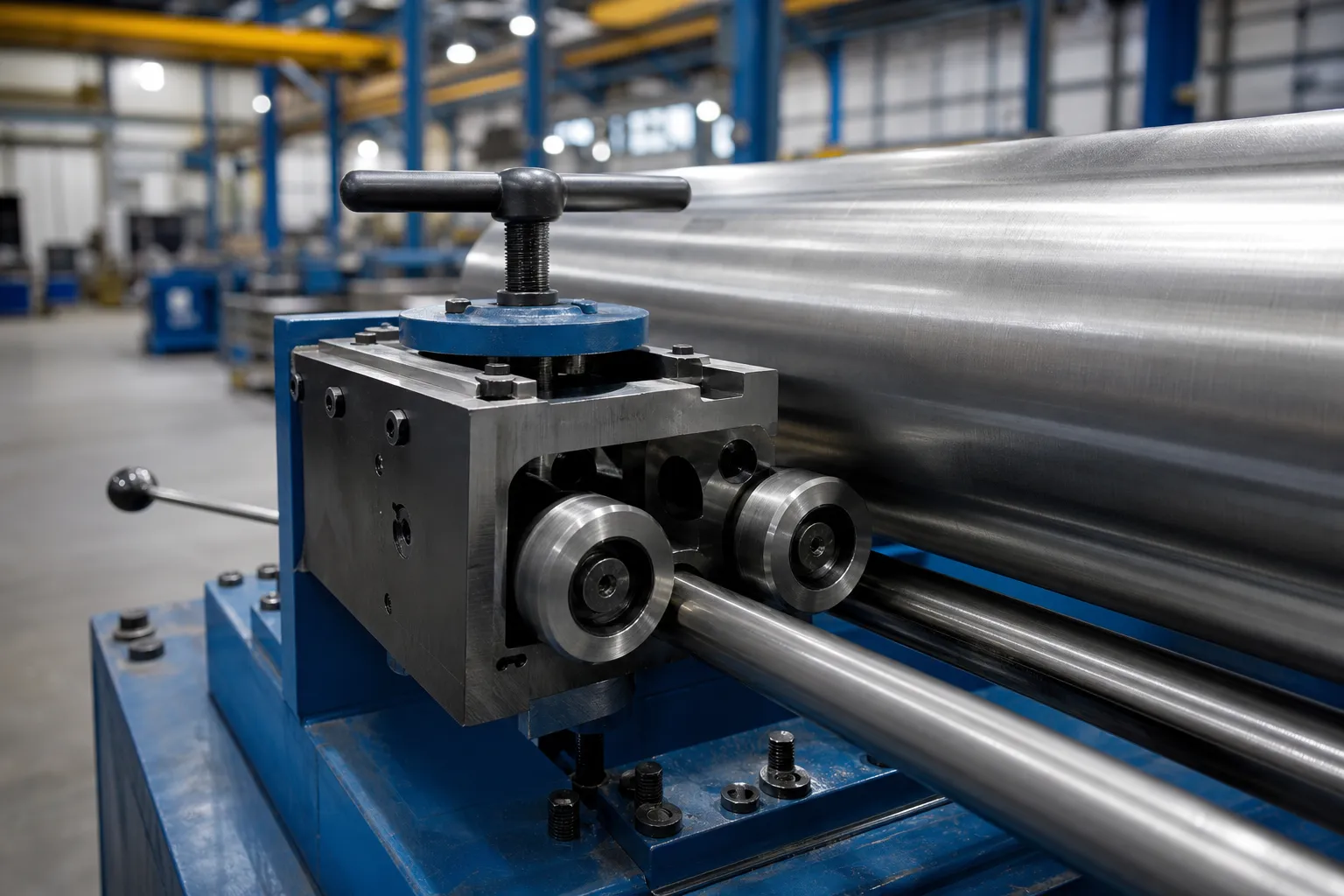

*Engineering concept illustration.*
Straightening Before vs After Plating or Coating
Straightening before vs after plating or coating is handled as a surface-contact and tooling-risk topic rather than a standalone URL. Review coating hardness, contact stress and rework limits on the surface-protection tooling page and on the relevant workpiece page before choosing the straightening stage.
Surface protection decisions like these show up directly on the finished part – the tooling marks guide covers contact damage in detail, and over-straightening and cracking covers the deformation side of the same risk.
