Press straightening and roller straightening both use controlled plastic bending to reduce unwanted deformation, but they solve different production problems. A stepped gearbox shaft with finished journals needs selective measurement and protected correction zones. A long constant-diameter bar may need repeated bending through rolls and continuous material handling.
The correct method depends on workpiece geometry, process stage, material condition, bend profile, surface requirements, acceptance method and production volume. Diameter and length alone are not enough to select a machine.
*Engineering concept illustration.* It depicts a possible controlled correction arrangement; actual datum, supports and press zones require workpiece validation.
How Roller Straightening Works
Roller straightening passes a bar, tube, wire or suitable profile through arranged rolls. The workpiece undergoes repeated bending beyond the elastic range so that the remaining curvature is reduced as it exits the straightener. In two-roll rotary systems for round products, inclined shaped rolls also rotate and advance the workpiece through the machine.
Roll number, roll profile, gap, angle, offset, guide setting, speed and material response influence the result. A machine designed for bright round bar is not automatically suitable for a thin-wall tube, black bar, finished stepped shaft or non-round profile.

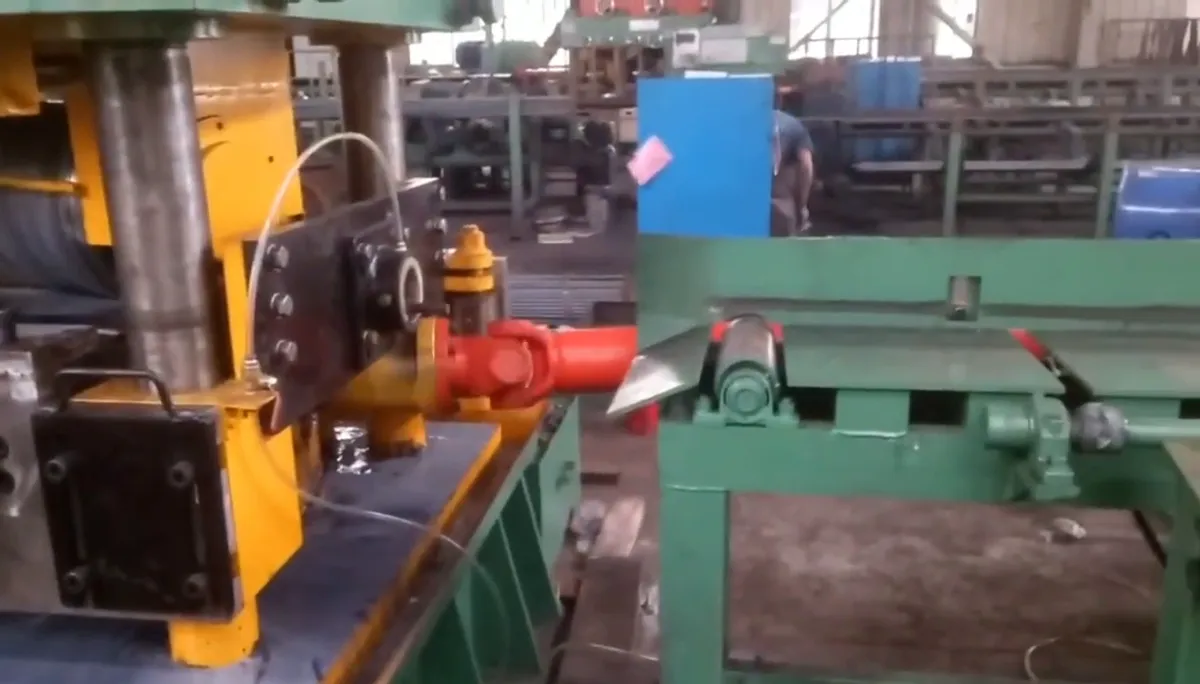

The video shows one long round-bar roller-straightening line and its extended support arrangement. It demonstrates the material-flow concept only; it does not prove a universal diameter range, tolerance, wall condition, speed or result.
*Engineering concept illustration.* It depicts a roller-straightening principle and does not establish a universal processing window.
Main Advantages
- Efficient processing of long, constant-section material.
- Continuous or through-feed operation can suit higher production volume.
- Repeated bending acts over the workpiece length instead of at one isolated point.
- Suitable designs may combine straightening with surface polishing of bright bar.
- Roll settings can be stored as recipes for validated material families.
Main Limitations
- Steps, flanges, gears, threads and finished features may not pass safely through the rolls.
- Roll marks, spiral marks, ovality, wall collapse or section distortion must be controlled.
- End straightness and usable end length require verification.
- Incoming bend wavelength and severity can exceed the roll arrangement’s correction window.
- Mixed materials and yield strengths may need different settings even at the same diameter.
Detailed Method Comparison
The comparison below describes process architecture, not a universal performance ranking. OEM sources show that point-press systems can measure and correct selected locations, while two-roll and multi-roll systems are configured around the product section, material condition and roll arrangement. Neither architecture alone proves the final tolerance, takt time or surface result for an untested workpiece.
| Decision Factor | Point Press Straightening | Roller Straightening |
|---|---|---|
| Typical workpiece | Discrete, stepped or feature-rich shaft | Continuous or cut-length uniform bar/tube/wire |
| Correction action | Local over-bending at selected axial/angular position | Repeated bending through a roll arrangement |
| Datum control | Can rotate on functional journals or centers | Usually governed by roll/guide contact and line setup |
| Measurement | Often integrated before/after at several stations | May be offline, inline or integrated depending on line |
| Protected zones | Flexible no-support/no-probe/no-press rules | Difficult when protected features must enter the rolls |
| Surface contact | Local tooling contacts | Extended rolling contact along the surface |
| Throughput | Depends on measurement and correction iterations | Often stronger for continuous uniform material |
| Model change | Recipe plus supports, probes and tooling | Roll/guide/gap/angle/speed change |
| Large local bend | Can target the location if within validated limits | May require pre-straightening or rejection |
| Data traceability | Natural fit for before/after and correction records | Requires an added or integrated measurement system |
| Main risk | Wrong datum, over-correction, cracks or local marks | Surface marks, ovality, collapse, spiral effect or end error |
Geometry Is the First Selection Gate
A constant cross-section gives the rolls a repeatable contact condition. A stepped shaft changes diameter and stiffness along its length. A gear, spline, flange, keyway or threaded portion introduces functional surfaces and stress concentrations.
| Geometry Question | Why It Changes the Method |
|---|---|
| Is the section constant for the full roll-contact length? | Steps or flanges may collide with or be damaged by rolls |
| Is the part solid or hollow? | Thin walls may ovalize, dent or collapse |
| Are there interrupted features? | Keyways, holes, teeth and splines disturb rolling and probe signals |
| Is the part symmetric around its axis? | Racks, cams and profiles need feature-aware support and correction |
| Where is the dominant bend wavelength? | Short local bends and long sweeping curves respond differently |
| How much usable end length is required? | Roller and support geometry can produce end effects |
When the part combines several risks, select around the most sensitive feature rather than the easiest diameter.
Process Stage and Surface Condition
Straightening before machining, after heat treatment and after grinding are different projects.
Raw or Semi-Finished Material
Rolled, drawn or peeled bars often have a constant section and enough machining allowance for roller contact. Roller straightening can be integrated before cutting, centerless grinding or machining when the material and surface requirements match.
Heat-Treated Components
Hardness and residual stress change springback and crack risk. A point press can apply model-specific limits, but sample tests and inspection are required. Roller straightening may still be feasible for some hardened uniform stock; it should not be assumed from a softer-material recipe.
Finished Shafts
Ground journals, threads, splines, coatings and sealing surfaces need protection. Local contoured supports and press tooling often provide more control than full-surface rolling contact, but even point tooling must be validated for marks and contact pressure.
Material Response and Springback
Both methods must bend the material beyond its elastic response and account for springback. The required settings depend on yield strength, hardness, section modulus, prior processing and residual stress.
| Material Input | Press-Straightening Impact | Roller-Straightening Impact |
|---|---|---|
| Yield strength and hardness | Required stroke/force and crack limit | Roll gap, angle, load and number of bending events |
| Diameter and local section | Support span and correction sensitivity | Roll profile and setting window |
| Wall thickness | Local dent/collapse risk | Ovality and collapse risk through repeated contact |
| Heat-treatment batch | Springback recipe and sample coverage | Setting stability across the batch |
| Surface condition | Contact material and cleanliness | Roll finish, pressure and mark risk |
| Incoming bend distribution | Correction count and reachable points | Entry stability and correction capacity |
No method should use a fixed setting across an unverified material matrix.
Measurement and Acceptance
The chosen machine must prove the same characteristic that the customer accepts. A point-press machine often measures radial runout while rotating on defined journals. A roller line may use an inline gauge, a downstream station or offline straightness inspection.
Measurement taken during an applied correction load is not the released result. The process must verify the part after the correction force is removed; if the customer's final gauge uses a different support or datum arrangement, that agreed reference remains controlling until a documented correlation study authorizes the machine result for acceptance.
The proposal must state:
- controlled characteristic: straightness, circular runout, total runout or another requirement;
- datum or reference setup;
- measurement stations or full-length probe path;
- free-state or clamped-state condition;
- excluded features and filtering rules;
- incoming and final acceptance limits;
- correlation between machine and customer gauges.
For terminology and measurement planning, see Shaft Straightness vs Runout vs TIR.
When a Hybrid Process Makes Sense
The methods are not mutually exclusive across a manufacturing route.
- A severely bent raw bar may receive pre-straightening before precision processing.
- Constant-section stock may be roller-straightened before cutting and machining.
- The finished stepped shaft may receive datum-based point correction after heat treatment.
- A long line may combine through-feed straightening with downstream measurement and selective rework.
- Parts beyond the automatic correction window may be diverted to a manual or heavy press review.
The process plan should identify which stage creates the deformation and which stage can correct it without damaging finished value.
Sample Validation Matrix
| Trial Group | Why It Is Needed |
|---|---|
| Shortest and longest parts | Confirms support, roll contact and handling envelope |
| Smallest and largest sections | Confirms force/resolution or roll-setting window |
| Lowest and highest material strength | Captures springback and overload risk |
| Normal and worst incoming bends | Tests correction capacity and reject boundary |
| Critical surface finishes | Checks roll/tooling marks and cleanliness controls |
| Thin-wall or hollow samples | Checks ovality, denting and collapse risk |
| Parts near final tolerance | Supports gauge correlation and acceptance stability |
| Full model change sequence | Confirms recipe, tooling and setup repeatability |
The sample report should record incoming condition, settings, correction count or passes, final measurement, surface condition, end condition, cycle distribution and rejected samples. Only tested conditions should enter the final guarantee.
Information Needed for Method Selection
Send the following before requesting a machine recommendation:
- 2D drawing and model matrix;
- constant or stepped section details;
- solid/hollow construction and wall thickness;
- material, yield strength, hardness and heat-treatment state;
- incoming bend magnitude, direction and wavelength distribution;
- final straightness/runout requirement and inspection method;
- allowed support, roll-contact, measuring and pressing surfaces;
- finished surfaces, coatings, threads, gears, splines, holes and keyways;
- minimum usable end length and end-straightness requirement;
- production volume, takt time, loading method and changeover frequency;
- representative samples, including worst cases.
FAQ
Is roller straightening always faster than press straightening?
It often supports higher throughput for uniform material, but actual takt includes loading, setup, measurement, changeover and rejected-part handling. A feature-rich shaft may be impossible or unsafe to process through rolls even if the rolls are fast.
Is press straightening always more accurate?
No universal accuracy ranking is valid. Result depends on workpiece, datum, measurement, material response, machine resolution, tooling and sample validation. The methods control different geometries in different ways.
Can a stepped shaft use a two-roll straightener?
Only if every contacting feature and transition is proven compatible with the roll geometry and surface requirements. Finished stepped shafts are usually stronger candidates for datum-based point correction.
Can thin-wall tubes be press straightened?
Potentially, with distributed supports and tooling designed to prevent local collapse. Roller straightening may also be suitable, but wall thickness, diameter, weld, ovality and surface requirements must be validated.
What causes marks after roller straightening?
Possible causes include roll finish, contamination, excessive pressure, incorrect angle/gap, sliding, material scale and unstable guides. The actual surface standard and representative samples must be part of the trial.
Can one factory use both methods?
Yes. They often serve different workpiece families or different manufacturing stages. The equipment strategy should follow the part portfolio rather than force every part into one machine concept.
Select the Process from the Workpiece
Choose press or roller straightening only after defining geometry, functional datum, protected surfaces, material response, bend distribution, production demand and acceptance method. This turns machine selection into an engineering decision instead of a diameter-based guess.
