Oil Drill Pipe Straightening Solutions

The tool joints at each end of a drill pipe are friction-welded, thick-wall forged sections carrying the API connections — the stiffest part of an already stiff assembly. In practice they almost never bend alone: when inspection flags runout or bend at a tool joint, the actual curvature usually lives in the pipe body near the weld transition or in the body-to-joint interface, and the correction is performed on the whole pipe with the joints in place. Straightening a tool joint in the workshop sense therefore means whole-pipe straightening, measured at the joints.

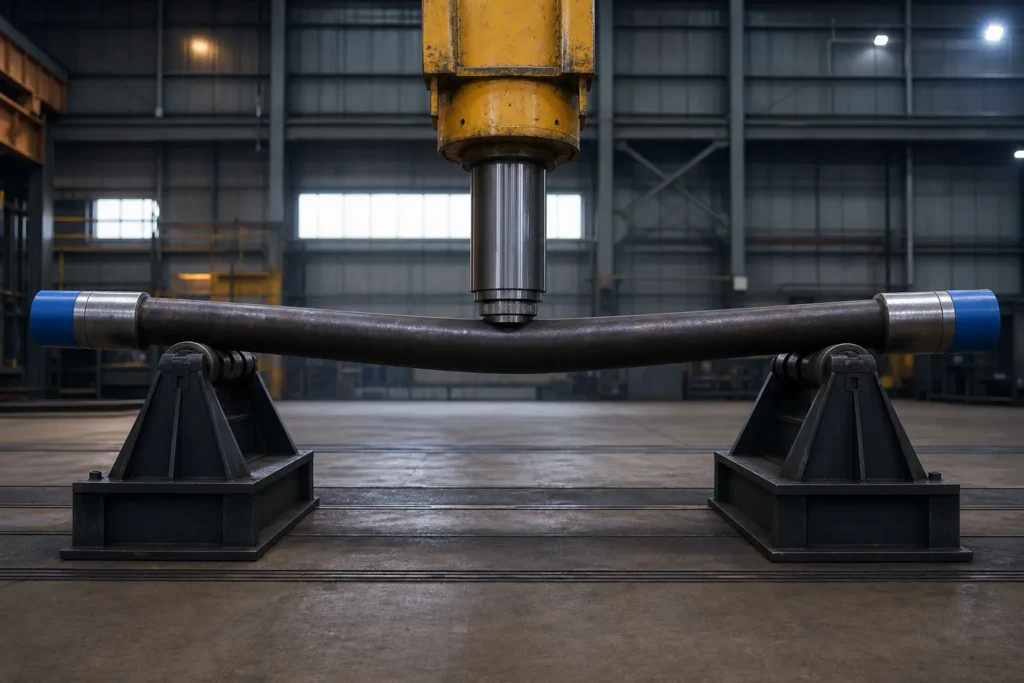

That measurement point matters. A straightened drill pipe is accepted at the connection: the runout between the joint thread axis and the pipe body axis is what runs true in the string, so the inspection datum is the joint even when the press acts on the body meters away. The correction route follows the press-versus-roll logic explained in our press straightening vs roller straightening comparison, with thread protectors installed before any contact and support spacing set from the measured bend map rather than from pipe length habits.

Sequence is the other half of the story. Oilfield inspection contractors describe reconditioning flows in which straightening comes first, before cleaning and the subsequent wall-thickness, drift and crack surveys — the geometry has to be restored before those inspections produce meaningful results (reported service-sequence descriptions from drill pipe reconditioning providers). For the heavier BHA members below the pipe, correction logic escalates in force class: see our drill collar straightening and heavy weight drill pipe straightening pages for the transition-zone and collar families.

Two practical rules keep tool-joint-related straightening out of trouble. First, protect the connections before anything else: thread protectors stay on during measurement and pressing, and no support, roller or clamp ever bears on a shoulder, thread or rotary-shoulder seal face — the connection is the most valuable and least repairable feature on the pipe. Second, treat the friction-weld zone as its own inspection item: a bend concentrated near the weld should trigger crack inspection of the transition area before any press cycle, because that zone carries both weld residual stresses and the section change that concentrates service bending. A pipe that passes a straightness check but carries a damaged connection or an uninspected weld anomaly has not been reconditioned — it has only been made harder to reject.
