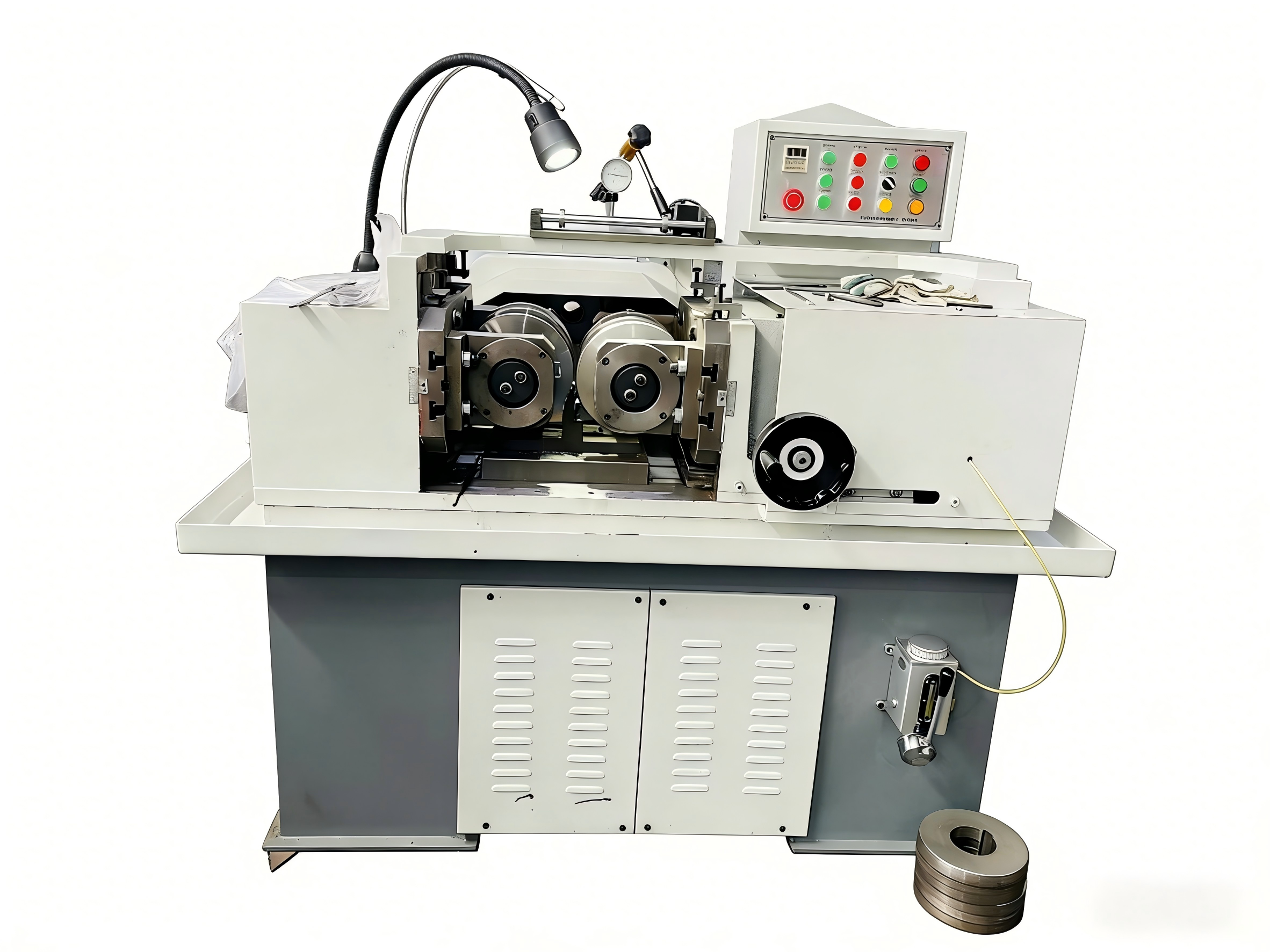

UBJ80 Long Screw Two-Roll Straightening Machine is a professional straightening equipment tailored for heat-treated deformed screws, providing efficient and stable straightening solutions for screw processing enterprises with excellent performance and comprehensive advantages.The core advantages are significant:The control system is fully functional, fast response and highly reliable; The structure is compact and reasonable, the static/dynamic/thermal stability is good, and it supports 24h×25 days of continuous operation. Handwheel adjustment feed and locking design, convenient change; It can be adapted to a variety of screws with a diameter of 4.13-18mm and a length of 50-300mm, which is highly versatile; It is also equipped with operation prompts and reliable protection structure, which is safe and worry-free.
Long Screw Straightening Machine Parameters
| No. | Parameter Name | Technical Parameter |
|---|---|---|
| 1 | Product Diameter (mm) | Φ4.13-18 |
| 2 | Straightening Length (mm) | 50-300 |
| 3 | Maximum Spindle Rolling Pressure (KN) | 80 |
| 4 | Straightening Accuracy (mm) | ≤0.1 |
| 5 | Roller Inclination Angle (°) | ±3 |
| 6 | Roller Diameter (mm) | Φ170-Φ190 |
| 7 | Roller Spindle Speed (r/min) | 16-100 |
| 8 | Main Motor Power (KW) | 5.5 |
| 9 | Oil Pump Motor Power (KW) | 2.2 |
| 10 | Total Machine Weight (Kg) | 1300 |
| 11 | Roller Hardness (HRC) | 58-60 |
| 12 | Overall Dimensions (mm) | 1600×1500×1400 |
