A pump shaft does more than transmit torque. It locates bearings, carries the impeller or displacement element, passes through a seal system and often connects a complete rotating assembly to the driver. A small bend can therefore appear as bearing-journal runout, seal-surface motion, coupling error, impeller clearance loss or rotor vibration.
A reliable pump shaft straightening solution must answer five questions before machine selection:
- Is the workpiece a bare production shaft, a repair shaft or an assembled pump rotor?
- Which bearing, center or functional journal defines the rotation axis?
- Is the measured signal true bend, local form error, setup error, self-weight sag or assembly error?
- Which shaft lands may be supported and pressed without damaging seal, bearing or fit surfaces?
- How will released geometry and downstream rotor assembly be verified?
*Engineering concept illustration of a bare stepped pump shaft in a closed-loop straightening cell. It is not a customer-site photograph or performance evidence. Actual support locations, sensor tracks and force limits require the workpiece drawing and representative sample tests.*
Pump Shaft Straightening Is Not One Application
Search results for pump shaft straightening machine mix automatic production equipment with service-center repair methods. These are related problems, but they are not interchangeable offers.
| Pump-Shaft Family | Typical Context | Straightening Decision |
|---|---|---|
| Centrifugal-pump bare shaft | New production after turning, heat treatment or grinding | Closed-loop runout measurement and controlled correction may be suitable |
| Multistage pump shaft | Long stepped shaft carrying several impellers and sleeves | Multi-track datum map, self-weight control and protected contact study |
| Vertical turbine lineshaft | Very long, slender shaft assembled in sections | Segmenta identitāte, atbalsta atstatums, thread/coupling protection and service procedure are critical |
| Close-coupled pump rotor | Shaft integrated with a motor rotor or pump cartridge | Separate assembled-rotor study; do not treat it as a bare shaft |
| Hydraulic pump shaft | Compact shaft with splines, gears or swash-plate interfaces | Īss laidums, feature-rich measurement and restricted press map |
| Repair or remanufacturing shaft | Unknown heat, korozija, wear or previous repair history | Inspect and classify before choosing mechanical, heat or peening repair |
| Reciprocating positive-displacement pump shaft | Crankshaft or camshaft geometry | Use the dedicated crankshaft or camshaft process, not this page |
This page focuses on bare, one-piece industrial pump shafts. Complete rotors, welded assemblies, built-up shafts and field alignment problems need separate engineering routes.
Freeze the Pump and Process Stage
The same shaft drawing can require different treatment at different stages.
After Rough Turning
There may be machining stock on bearing and seal journals, so controlled correction can protect downstream grinding allowance. The datum strategy must still match the intended finished axis.
Pēc termiskās apstrādes
Distortion may be correctable, but hardness, lietas dziļums, residual stress and crack risk become process inputs. A correction recipe cannot be transferred from an annealed shaft without trials.
Before Final Grinding
Straightening and grinding stock should be planned together. Grinding can correct local diameter and form, but it should not be used automatically to hide a bent common axis.
After Final Grinding or Coating
Bearing seats, seal running surfaces, pavedieni, splines and coatings may already be finished. Contact protection and surface inspection become stricter, and some shafts should be rejected or routed to another process instead of pressed.
Repair or Service Return
Valkāt, korozija, fretting, thermal damage, seizure, crack indications and previous metal restoration can invalidate a production straightening recipe. The repair authority must approve the method before correction.
Define the Functional Datum Chain
KSB describes the pump shaft as the central rotor component carrying impellers, sleeves, bearings, balancing devices, coupling and other rotating parts. That function means one generic TIR reading is not enough.
Priekšlikumā ir jānorāda:
- drive-end and non-drive-end bearing journals;
- centriem, center holes or alternative reference lands;
- mechanical-seal or packing running surface;
- impeller fits, sleeve fits and spacer locations;
- coupling fit, atslēgas rievas, spline or thread;
- thrust collar, balance disc or drum locations;
- shoulders and axial datum faces;
- corrosion-resistant or coated zones;
- eļļas caurumi, cross holes or stress concentrations;
- final assembly and customer inspection setup.
The datum hierarchy should be agreed before the machine is sized. Centers may be useful for manufacturing, bearing journals may define the installed rotation axis, and the customer gauge may use another support condition. The final acceptance plan must correlate these setups rather than assuming they produce identical readings.
Separate Bend from Other Runout Signals
For each measurement track, record the full angular waveform rather than only one maximum value.
| Signāla avots | What It Can Look Like | Required Response |
|---|---|---|
| Global shaft bend | Related angular phase across several journals | Candidate for controlled correction after datum confirmation |
| Local journal form error | One track shows lobing, taper or isolated variation | Route to machining or surface evaluation, not automatic bending |
| Center or support error | Many tracks shift when the setup is repeated | Tīrs, reseat and qualify the datum system |
| Self-weight sag | Long shaft changes with support spacing or orientation | Apply an agreed support/sag model and released-part check |
| Dirt, burr or coating defect | Vietējais, non-repeatable probe event | Clean and inspect before calculating a correction |
| Assembly-induced runout | Bare shaft passes but assembled rotor does not | Inspect fits, sleeves, impellers, coupling and assembly sequence |
| Thermal bow | Cold static map differs from operating condition | Treat as rotor/system diagnosis, not a cold-shaft guarantee |
Read our guide to straightness versus radial runout before converting a customer tolerance into a machine acceptance rule.

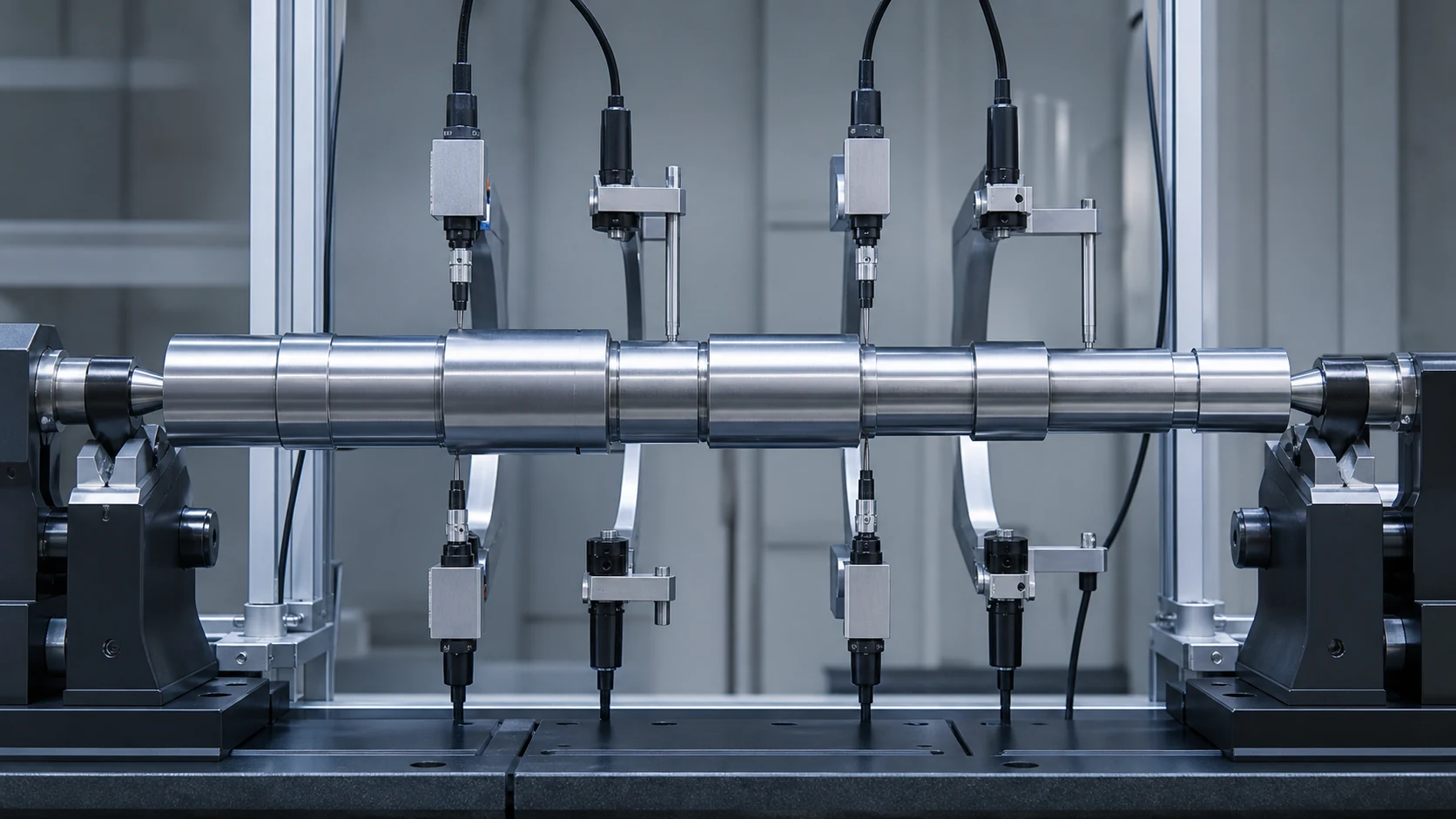

*Engineering concept illustration showing separate measurement tracks for bearing, zīmogs, coupling and impeller-fit journals. Acceptance values and probe locations require the customer drawing, support definition and gauge-correlation study.*
Control Long-Shaft Support and Self-Weight
EASA notes that many pump shafts are slender and susceptible to both bend and twist. A long multistage or vertical-pump shaft can deflect under its own mass during inspection.
The measurement plan should therefore freeze:
- shaft orientation;
- support type and spacing;
- rotation drive and contact force;
- probe force or non-contact sensor range;
- overhang at both ends;
- temperature and stabilization time;
- whether a sag correction model is allowed;
- released-part dwell and remeasurement method.
Adding supports is not automatically better. A support placed at the wrong journal can mask the true bend map, distort a thin section or create a measurement condition that does not correlate with the installed pump.
Build a Protected Contact Map
Every drawing review should produce an explicit support and press map.
Default No-Press or No-Support Zones
- mechanical-seal running surface;
- finished bearing journals unless validated protective tooling is used;
- pavedieni, keyways and splines;
- impeller, sleeve and coupling fits;
- pleciem, undercuts and fillet radii;
- eļļas caurumi, cross holes and thin transitions;
- pārklāts, plated, repaired or corrosion-damaged areas;
- balance features and identification marks;
- assembled impellers, bearings, sleeves, seals or couplings.
Potentially Approved Zones
- plain shaft lands identified on the drawing;
- sacrificial machining allowance before final grinding;
- validated protective sleeves over approved contact lands;
- dedicated support journals designed for the process.
Protective tooling must do more than prevent visible dents. It must also control local contact stress, slipping, contamination transfer and false measurement caused by the sleeve itself.
*Engineering concept illustration of approved contact lands and protected finished surfaces. The white sleeves represent project-specific protection, not a universal tooling design.*
Choose the Correct Straightening Route
Closed-Loop Press Straightening
This route measures the shaft, predicts a correction, applies a controlled load, releases the part and measures again. It is suitable when the shaft has approved support and pressure lands and when material response has been validated.
Rullīšu iztaisnošana
Roller-type equipment can be effective for constant-diameter shafts and bar-like components. ETA explicitly limits its standard roller-type platform to constant-diameter shafts. Most stepped pump shafts therefore require a different fixture and measurement concept.
Use our press straightening versus roller straightening guide to define the route before asking for a quotation.
Heat or Peening Repair
EASA and repair-sector search results show that heat and peening methods exist for service pump shafts. These are specialist repair processes with their own metallurgy, residual-stress and inspection controls. They are not default functions of an automatic cold press-straightening cell.
Replace or Re-machine
Straightening should not be used to rescue a shaft with unacceptable cracks, corrosion loss, damaged seal surfaces, exhausted grinding stock or an unapproved repair history. A controlled NOK route is part of the solution.
Control Springback and Cross-Coupling
Pump shafts often contain several diameters and stiffness transitions. A correction at one span can change runout at another bearing or seal journal.
A production recipe should use:
- a baseline angular map;
- a conservative first correction;
- complete unloading;
- atbrīvotās daļas pārmērīšana;
- updated response estimation;
- bounded repeat correction;
- a maximum-attempt or force stop rule;
- final inspection after the agreed dwell.
The purpose is not to hit a displayed value while the ram is loaded. It is to deliver stable geometry after release. Skat springback compensation in shaft straightening for the closed-loop logic.
Straightening Is Not Alignment or Balancing
These controls are connected but solve different errors:
| Kontrole | Galvenais jautājums | Typical Stage |
|---|---|---|
| Bare-shaft straightening | Are the functional shaft journals on the required axis? | Before final rotor assembly or grinding |
| Coupling alignment | Are the pump and driver axes positioned correctly in the installed system? | Installation or maintenance |
| Rotor balancing | Is mass distribution acceptable at operating speed? | After relevant rotating parts are assembled |
| Clearance verification | Do impeller, wear-ring and casing clearances remain acceptable? | Assembly and functional inspection |
| Seal inspection | Is the seal running surface and installed motion acceptable? | Shaft and assembly inspection |
A straight bare shaft does not prove the installed pump is aligned or balanced. Un otrādi, coupling misalignment or hydraulic loading should not automatically be diagnosed as a bent shaft.
Closed-Loop Pump Shaft Straightening Process
1. Identify the Shaft
Load part number, pārskatīšana, pump family, materiāls, heat-treatment state and process stage.
2. Pārbaudiet un notīriet
Check centers, žurnāli, pavedieni, atslēgas rievas, pārklājums, korozija, cracks and previous repairs. Remove contamination that can distort the map.
3. Qualify the Datum Setup
Confirm centers or support journals, atbalsta atstatums, pārkare, rotation drive and customer-gauge correlation.
4. Measure All Functional Tracks
Collect angular runout waveforms at bearing, zīmogs, impeller, sleeve and coupling locations defined by the control plan.
5. Classify the Signal
Separate global bend from local form, setup error, self-weight sag and assembly-related deviation.
6. Select an Approved Load Path
Choose support and pressure lands from the drawing-based contact map. Block correction if the required load path crosses a protected feature.
7. Apply Incremental Correction
Use bounded force or displacement and record the response. Do not transfer a recipe between materially different shaft families without validation.
8. Atlaidiet un atkārtoti izmēriet
Unload completely, observe the required dwell and rebuild the full functional-journal map.
9. Inspect the Surface
Verify contact marks, pārklājums, pavedieni, atslēgas rievas, seal surfaces and any required crack or surface condition.
10. Route the Shaft
Pass, repeat within approved limits, send to grinding or inspection, or reject. Preserve the record for traceability.
This follows the measurement–correction–release–remeasure architecture described in how automatic shaft straightening works.
Proposed Pump Shaft Straightening Cell
A project-specific cell can include:
- manual, robot or gantry loading;
- part identification and recipe control;
- center, V-support or roller support modules;
- adjustable outboard supports for long shafts;
- multiple contact or non-contact runout sensors;
- angular indexing and waveform acquisition;
- servo-electric or hydraulic correction axis;
- interchangeable protected support and press tooling;
- force and displacement monitoring;
- atbrīvotās daļas pārmērīšana;
- pass/rework/NOK routing;
- SPC, traceability and data export;
- safety enclosure and controlled access.
The final architecture depends on shaft geometry, materiāls, stage, tolerance, apjoms, upstream/downstream flow and plant requirements. No universal machine range or cycle time should be quoted before those inputs are reviewed.
Pārbaudes un pieņemšanas plāna paraugs
| Gate | Pierādījumi | Pass Rule |
|---|---|---|
| Drawing review | Funkcija, datum, tolerance and contact-zone map | Engineering and customer approval |
| Incoming inspection | Repeatable baseline waveform on all required tracks | Setup variation within the agreed measurement study |
| Correction trial | Force/displacement/angle and released response | No prohibited contact and stable correction behavior |
| Surface gate | Visual or specified surface inspection | No unacceptable marks or damage |
| Geometry gate | Released runout/straightness results | Customer-defined values under the agreed setup |
| Procesa spēja | Representative sample set across incoming bend range | Agreed capability and rework limits |
| Mērinstrumentu korelācija | Machine versus customer inspection | Agreed correlation and dispute rule |
| Downstream check | Grinding stock, assembly, zīmogs, clearance or balance result | Project-specific functional acceptance |
| Izsekojamība | Recepte, part ID, measurements and correction history | Complete retrievable record |
Use our straightening sample test and acceptance guide to convert a general inquiry into a controlled validation program.
Data Required for a Technical Proposal
Lūdzu, sniedziet:
- 2D zīmējums un, kur pieejams, a 3D model;
- pump type and bare-shaft or assembled-rotor status;
- materiāls, termiskā apstrāde, hardness and coating;
- shaft length, weight and all functional diameters;
- gultnis, zīmogs, impeller, sleeve and coupling features;
- center-hole and support-journal details;
- drawing datum and customer inspection setup;
- runout or straightness limits for every required track;
- incoming bend distribution and angular maps if available;
- approved and prohibited contact zones;
- virsmas, crack and corrosion acceptance rules;
- grinding stock and downstream operation;
- required throughput, automation and traceability;
- plant voltage, safety and line-integration requirements;
- pārstāvis labs, borderline and NOK samples.
Bieži uzdotie jautājumi
Can a Pump Shaft Be Straightened?
Often yes, when the shaft material, procesa posms, bend pattern and approved contact zones support a validated correction. Some damaged, cracked, worn or assembled shafts should be repaired by another method or replaced.
Which Journals Should Define Pump Shaft Runout?
Usually the bearing-related axis is central, but the correct datum depends on the pump design and customer drawing. Seal, coupling and impeller-fit journals should be measured as separate functional tracks.
Can the Machine Press on a Mechanical-Seal Surface?
Nav pēc noklusējuma. Finished seal surfaces are protected zones unless a drawing-based tooling and contact-stress study explicitly approves the contact.
Is a Roller Straightener Suitable for a Stepped Pump Shaft?
Ne automātiski. Standard roller platforms are often intended for constant-diameter shafts. A stepped pump shaft may require dedicated supports, localized press correction and multi-track measurement.
Can Grinding Remove Pump Shaft Runout?
Grinding can correct local geometry and finish, but it should not be assumed to restore a bent functional axis while preserving all stock and fits. Straightening and grinding must be planned together.
Does a Straight Shaft Eliminate Pump Vibration?
Nē. Vibration can also come from alignment, līdzsvaru, hydraulic forces, bearing condition, looseness, fit errors and operating conditions.
Can an Assembled Pump Rotor Be Press-Straightened?
It requires a separate study. Impellers, sleeves, bearings, seals, interference fits and balance features can change both the measured signal and the safe load path.
Do You Guarantee a Universal Tolerance or Cycle Time?
Nē. Those values depend on the actual geometry, materiāls, ienākošais līkums, measurement method and validation results. We define them through drawing review and representative sample testing.
Build the Solution Around the Pump's Functional Axis
The right pump shaft straightening machine is not selected from length and diameter alone. It is engineered around the pump family, procesa posms, functional datum chain, aizsargājamām virsmām, materiālā atbilde, released geometry and downstream rotor checks.
Send the shaft drawing, pārbaudes metode, incoming bend data and representative samples. We can then define the support strategy, sensor tracks, correction route, instrumenti, trial plan, acceptance rules and automation scope as one controlled solution.
