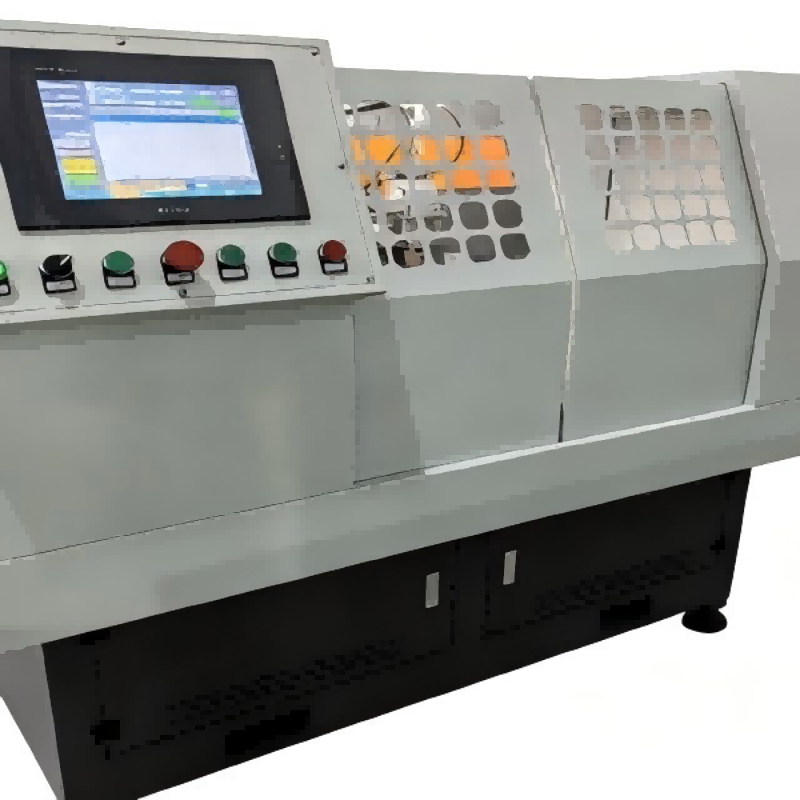

ZD300 impact screwdriver straightening machine is a servo CNC special equipment designed for mass production, which restores the straightness and coaxiality of the bit/tool holder through precise force to ensure the accuracy and service life of torque transmission. The equipment is adapted to the processing of core components of manual, pneumatic, and electric impact screwdrivers, supports automatic linkage and data traceability, helps enterprises get rid of dependence on labor/outsourcing, and achieve cost reduction, efficiency increase and quality stability.
Impact Screwdriver Straightening Machine Parameters
| Parameter Name | Specification |
|---|---|
| Model | ZD300 |
| Machining Diameter | 3-8mm (Length ≤150mm when diameter is 3mm) |
| Machining Length | 80-300mm |
| Voltage | 480V/3-phase |
| Overall Dimension | 1900×1500×1850mm |
| Net Weight | 920kg |
| Sirguse tolerantsus | ≤0,2 mm |
| Data Export | SD card compatible (straightening data) |
| Servo System | Delta 6 servo motors + matching drivers |
Impact Screwdriver Straightening Machine Configuration
| Configuration Module | Core Components |
|---|---|
| Control System | Delta PLC + Kinco 10-inch HMI |
| Detection Unit | Renishaw/Keyence Sensors |
| Drive Unit | Delta Servo Motors + Drivers |
| Pneumatic Components | Airtac Solenoid Valves / Cylinders / Air Pipes |
| Transmission Parts | Hiwin Linear Guide Rails & Sliders, Timing Pulleys & Belts |
| Safety Protection | Omron Safety Door Switches + Protective Covers |
| Automatic Linkage | POM Conveyor + Data Switch |
