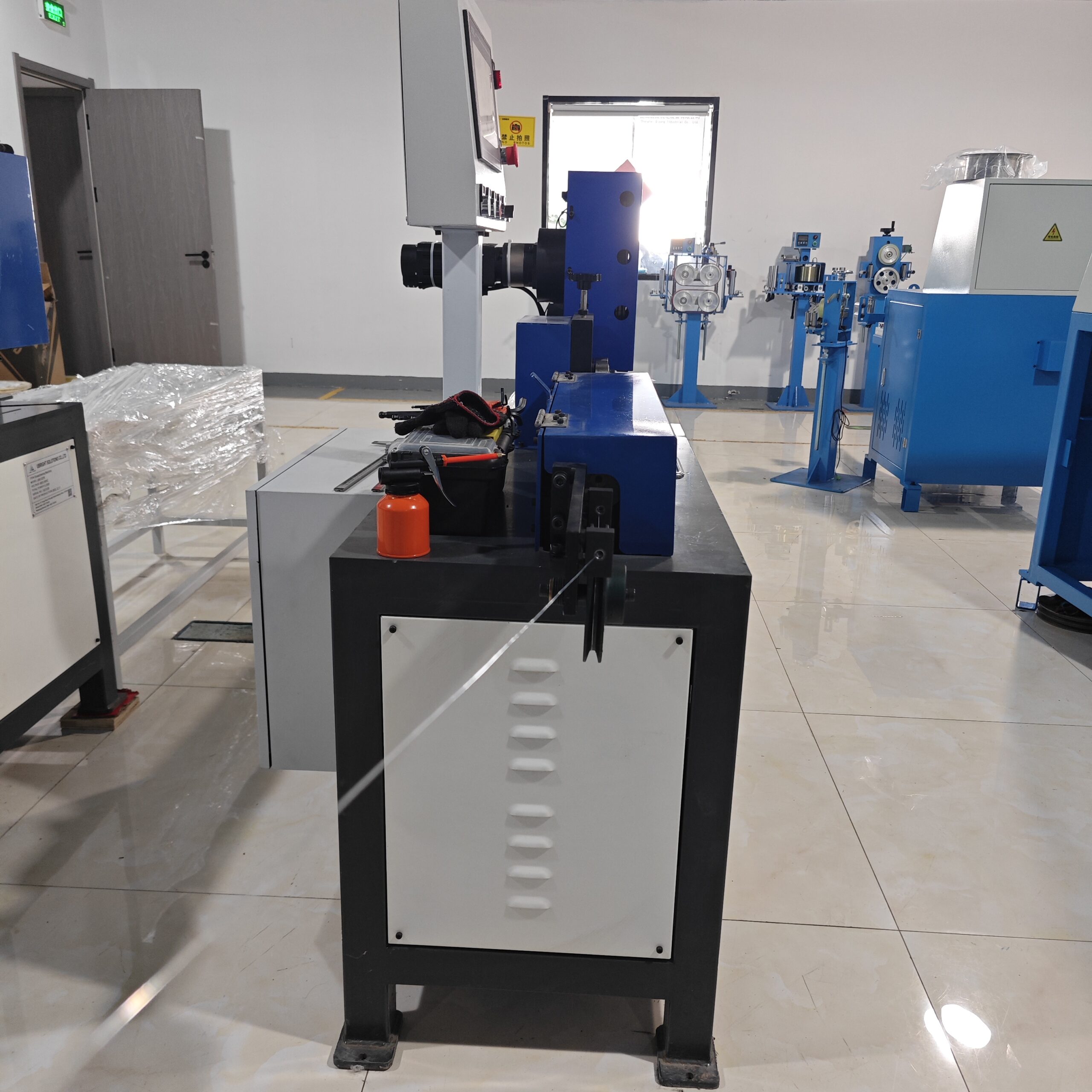

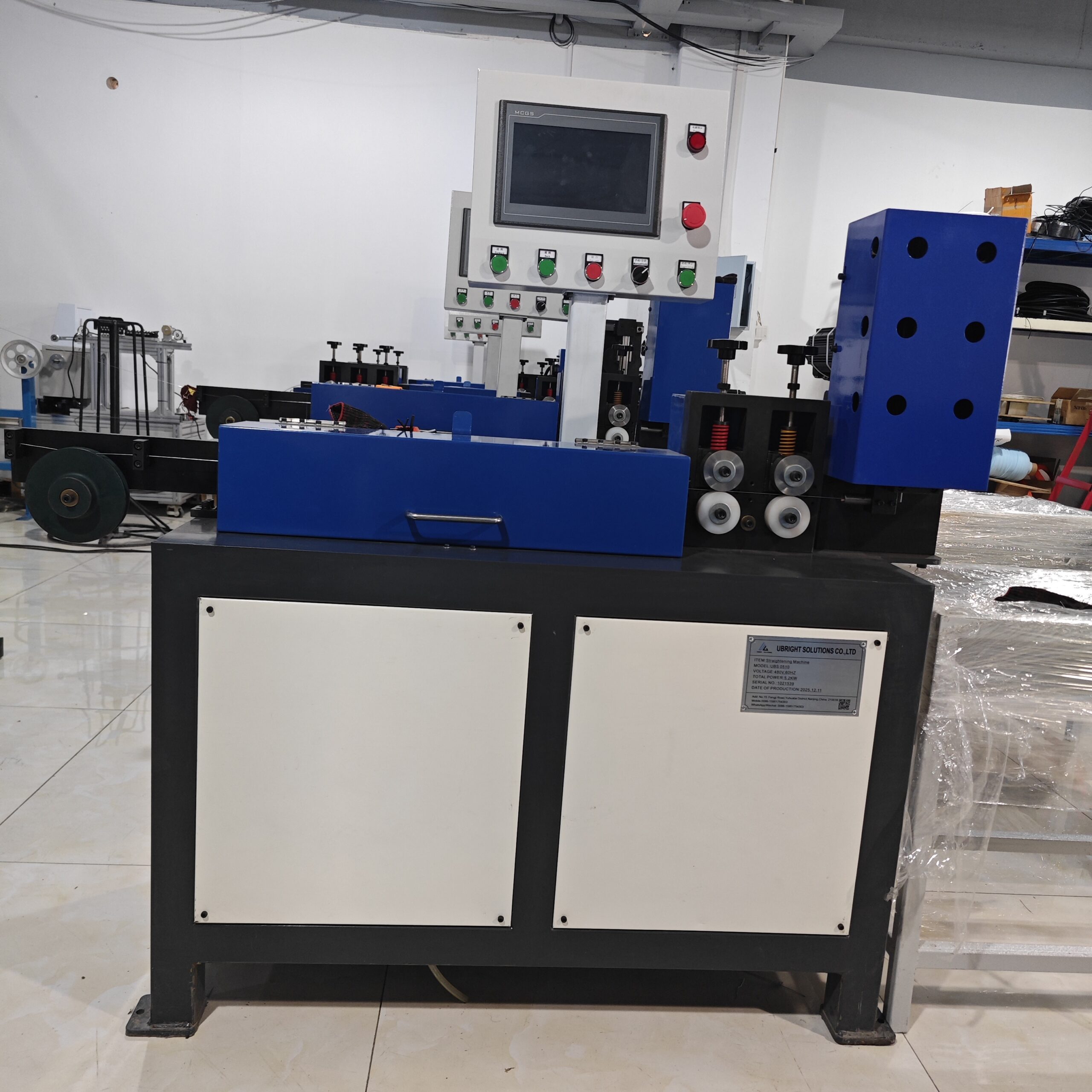

UBS02 Flying Shear Straighening Machine

  • Adopts PLC program control for precise cutting with high accuracy.
  • Touch screen control ensures simple operation.
  • Non-stop cutting greatly improves the straightening speed.
  • Professionally straightens ultra-fine wires, with a minimum size of 0.2mm.
  • Higher stability, better straightness, and reduced risk of wire breakage.
Kategori:



Flying Shear Straightening Machine Specification Table

Item Mini Flying Shear 0.2-0.9 Mini Flying Shear 1-3 Flying Shear 2-5 Flying Shear 4-7
Cutting Length Range 80 – Unlimited 80 – Unlimited 120 – Unlimited 120 – Unlimited
Length Error Tolerance ± 0.2mm ± 0.2mm ± 0.2mm ± 0.2mm
Feeding Speed 10-15m/min 40-60m/min 40-70m/min 40-70m/min
Feeding Servo Motor 1.5kw Servo Motor 1.5kw Servo Motor 2.6kw Servo Motor 2.6kw Servo Motor
Cutting Servo Motor 1.5kw Servo Motor 1.5kw Servo Motor 2.3kw Servo Motor 3.8kw Servo Motor
Straightening Motor 2*0.75kw Motor 1.5kw Motor 2.2kw Motor 4kw Motor
Wire Feed Group Count 4 Groups (8 Wheels) 4 Groups (8 Wheels) 5 Groups (10 Wheels) 6 Groups (12 Wheels)
Modulation Block Quantity 12 PCS 6 PCS 6 PCS 8 PCS
Adjustable Wire Diameter Range 0.2-0.9mm 1-3mm 2-5mm 4-7mm
Control Screen Touch Screen Touch Screen Touch Screen Touch Screen
Material Receiving Rack 1000300150 (Customizable) 1000300150 (Customizable) 1000300150 (Customizable) 1000300150 (Customizable)
Frame Dimension (LWH, mm) 15008001300 13008001300 16005001300 17005001300
