An industrial roller is a rotating precision component, not simply a large round bar. Its bearing journals establish the installed rotation axis, while the barrel may carry a specified cylindrical, tapered, crowned or otherwise controlled profile. The roll may be solid, dutý, fabricated, cast, forged, potažené, heated or internally cooled. These details determine whether pressure straightening is feasible and where force may safely enter the part.
A reliable industrial roller shaft straightening solution must define the roll family, manufacturing or service stage, journal datum, barrel geometry, support model, permissible contact zones, released-state measurement and the sequence between straightening, broušení, coating and balancing.
This is an engineering concept illustration of a rough-machined solid roll blank, nejde o fotografii zákaznického webu. Actual roll construction, fázi procesu, nářadí, force and machine size require drawings and representative sample tests.
Industrial Roller Workpiece vs Roller Straightening Machine
The word “roller” can describe either the workpiece or the machine method. They are not the same search intent.
| Období | Význam | This Page Covers It? |
|---|---|---|
| Industrial roller shaft | A rotating roll with a central barrel and end journals | Ano |
| Work roll or backup roll | Roll used in a rolling mill or related process | Ano, after roll-specific feasibility review |
| Paper, film or web-handling roll | Vysoký- or low-speed roll that guides or processes flexible material | Ano |
| Roller straightening machine | A machine with multiple straightening rolls for bars, tubes or profiles | Žádný; vidět Vyrovnávání lisem vs vyrovnávání válečkem |
| Long round bar | Semi-finished stock without a functional roll barrel | Viz Řešení pro vyrovnávání dlouhých ocelových tyčí |
This page treats the industrial roll as the workpiece and focuses on point or controlled pressure correction. It does not describe feeding the finished roll through a multi-roll straightener.
Define the Roll Family
The proposal should identify the real construction rather than only overall diameter and length:
- solid forged or cast work roll;
- backup roll, intermediate roll or smaller process roll;
- hollow tube roll with welded or shrink-fitted journals;
- fabricated roll with end heads and internal ribs;
- rubber-, polyurethane-, chrome-, ceramic- or otherwise coated roll;
- internally heated or cooled roll with bores, channels and rotary-union features;
- smooth, grooved, textured, engraved or patterned barrel;
- straight, tapered, crowned or compensated barrel profile;
- roll with integral gears, couplings, keyways or drive features;
- new-production roll versus a serviced/reconditioned roll;
- rigid rotor versus a long flexible rotor whose operating shape changes with speed.
A solid rough-machined roll can accept a very different load path from a thin-wall fabricated shell. One recipe cannot safely cover both.
Freeze the Manufacturing or Service Stage
After Forging or Casting
The roll blank may have scale, machining allowance and incomplete journals. Correction can support downstream machining, but measurement must distinguish surface stock variation from actual axis bend.
Po tepelném zpracování, Before Finish Grinding
The material state and major section geometry are established, while grinding stock may remain. This is often the most useful point for correlating the journal axis and barrel before final surface generation.
After Finish Grinding
Barrel profile, kulatost, crown and surface finish are functional. Direct press or support contact can mark the roll and can change the carefully generated profile. Correction permission normally becomes more restrictive.
After Plating or Coating
Hard chrome, rubber, polyurethane, ceramic and other surfaces require a coating-specific contact and strain review. A geometry correction that cracks, debonds or locally compresses the coating is not acceptable.
After Service
A used roll may contain wear, thermal damage, local yielding, koroze, praskliny, bearing-seat damage or residual unbalance. Straightening must not be used to hide a condition that requires regrinding, repair or rejection.
| Fáze | Datum Quality | Hlavní riziko | Required Decision |
|---|---|---|---|
| Rough blank | Limited and stock-dependent | Surface variation can appear as bend | Process datum and machining allowance |
| Heat-treated, pre-grind | Journals and body are more defined | Material strength and crack risk | Force/springback envelope and final grinding stock |
| Finish-ground | Functional barrel profile available | Promáčknutí, scratching and profile change | Protected contact and final full-length measurement |
| Potažené | Final surface system present | Cracking, debonding or compression set | Coating-owner approval and strain/contact limits |
| Service return | Functional history available | Wear or damage can be misclassified as bend | Inspekce, repair and rejection route |
Define What “Straight” Means for a Roll
One dial-indicator value cannot describe the complete workpiece. Výkres lze ovládat samostatně:
- radial runout of each bearing journal;
- coaxial relationship between the two journal axes;
- barrel runout relative to the journal axis;
- straightness of the derived barrel centerline;
- barrel diameter by axial station;
- cylindrical, tapered, convex, concave or custom crown/profile;
- roundness and cylindricity;
- face or shoulder runout;
- journal-to-coupling or gear relationship;
- surface waviness, chatter, roughness or texture;
- static and couple unbalance;
- operating deflection, nip, web tracking or product-quality behavior.
Použijte Shaft Straightness vs Runout vs TIR Guide to separate form, axis and rotational indication. Straightening can change global axis relationships; it does not automatically correct local roundness, crown, texture, wear or mass distribution.
Vytvořte hierarchii dat
The solution should distinguish:
- drawing datums that define the roll tolerance;
- bearing journals that establish the installed rotation axis;
- centers or process datums used by turning and grinding machines;
- straightening-machine supports and rotation devices;
- barrel and journal sensor tracks;
- balancing-machine supports and correction planes;
- the final machine bearings, nip or product-process reference.
These references may be related but are not automatically equivalent. Centers can be stable for grinding while damaged or irrelevant to the final bearing axis. A single barrel runout trace can combine journal eccentricity, barrel form, support error and actual bend.
Measure Journal Axis and Barrel Profile Separately
Herkules uses roll-specific measuring technology, including two-point C-frame measurement and separate inspection methods. The transferable principle is that roll diameter/profile and journal-axis behavior require structured measurement; the competitor machine performance is not a StraighteningTech guarantee.

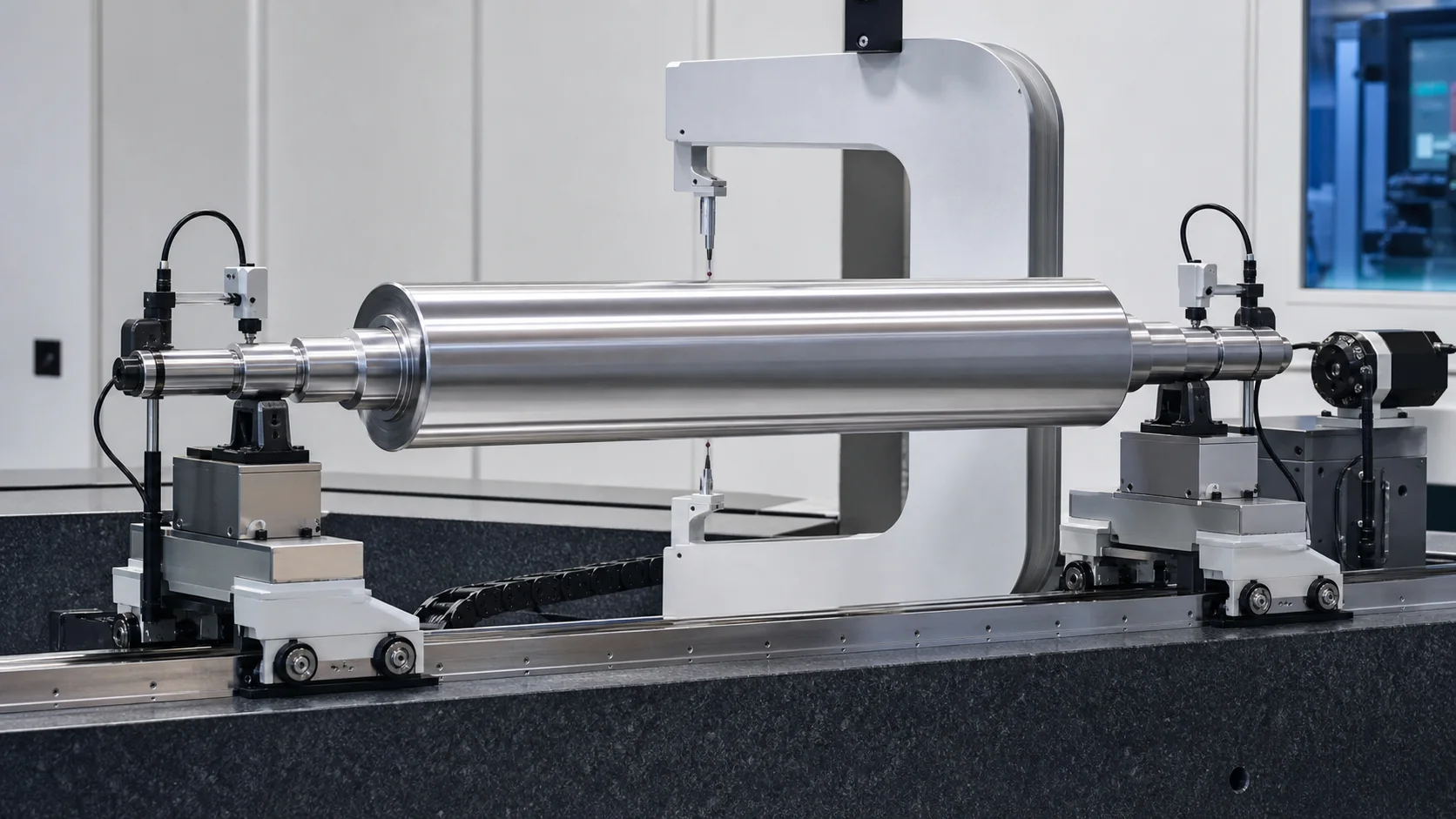

This engineering concept illustration shows a roll supported on its journals with a traveling two-point barrel gauge. Actual probe type, contact force, station spacing and profile evaluation follow the drawing.
| Měřicí dráha | Hlavní výstup | Interpretation Risk |
|---|---|---|
| Left and right journals | Functional rotation axis and journal runout | Local roundness or damaged seats can bias the axis |
| Barrel with two-point gauge | Diameter and profile by axial station | Does not alone show eccentricity to the journal axis |
| Barrel with single-point runout sensor | Barrel position relative to rotation | Mixes form, eccentricity and support error |
| Faces and shoulders | Axial runout and assembly location | Chamfers and burrs must be masked |
| Internal bore/channels | Wall distribution and structural condition | Requires separate internal measurement/inspection |
| Balance reference planes | Mass-axis relationship | Does not define geometric straightness |
For crowned rolls, the algorithm must compare the measured profile with the intended crown—not with a perfectly straight cylinder. For grooved or textured rolls, the feature pattern must be masked or measured with a suitable method.
Control Sag, Support Reaction and Temperature
Long heavy rolls deflect under their own mass. The observed curve changes with journal support position, roller width, contact stiffness, temperature and rotation angle.
The measurement recipe should define:
- exact journal support coordinates and profile;
- whether the roll is on centers, journal rollers or bearing-equivalent supports;
- sag treatment and mathematical model;
- multiple angular positions;
- contact-probe force or non-contact standoff;
- roll temperature and stabilization condition;
- released-state measurement after correction;
- correlation to the roll grinder, balancing machine or customer installation.
Thermal bow must be treated separately. A roll that bends only at operating temperature may not be safely corrected from one cold measurement. Heating/cooling channels, shell thickness and operating thermal profile require engineering review.
Build a Safe Contact Map
Typical Protected Zones
- finished barrel surface, crown and texture;
- chrome, rubber, polyurethane, ceramic or other coating;
- ložiskové čepy, seal tracks and finished fits;
- ramena, fillets and section transitions;
- drážky, splajny, threads and cross-holes;
- rotary-union passages and internal channels;
- svary, shrink-fit interfaces and end-head transitions;
- local hardened zones or repaired areas;
- identification marks and balance-correction features.
Correction Principles
- prefer approved rough-machined process lands before final grinding;
- use broad radiused shoes and supports matched to the local diameter;
- avoid transmitting a point load through a thin hollow shell;
- prevent edge loading at shoulders and barrel ends;
- allow controlled axial movement where required;
- monitor force and displacement through the complete stroke;
- limit correction count and accumulated strain;
- fully unload before judging the result.

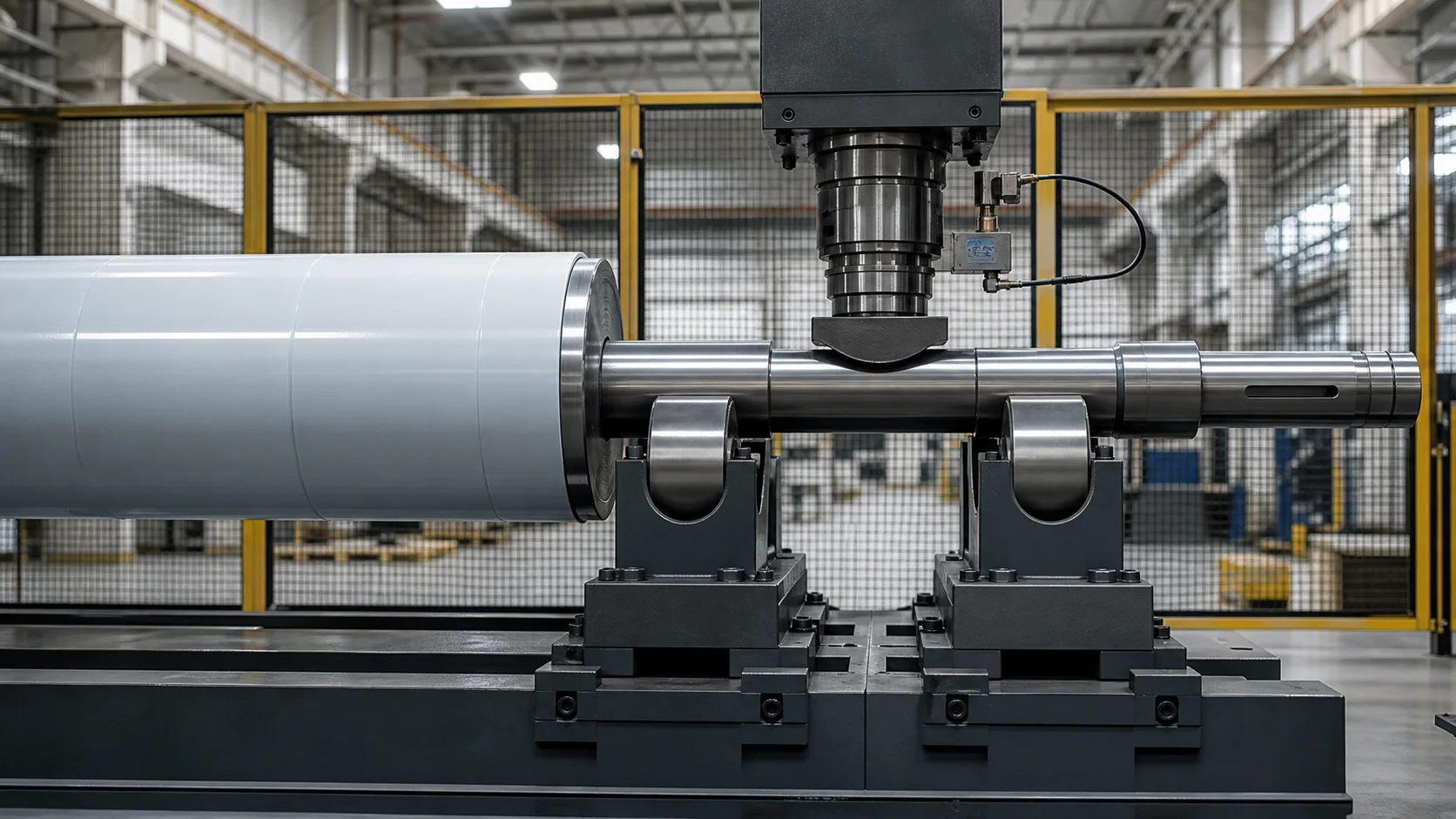

This concept illustration keeps the protected finished barrel outside the press frame and confines correction to an approved exposed shaft span. Not every roll provides such a span; the actual load path requires drawing and sample validation.
Solid Roll vs Hollow Fabricated Roll
| Construction | Potential Advantage | Main Straightening Risk | Požadovaný důkaz |
|---|---|---|---|
| Solid forged roll | Continuous load path and predictable section | High force, hardened surface and crack risk | Material state, hardness and force/springback trials |
| Cast roll | Integral body and journals | Brittle microstructure or casting defects | Metallurgical approval and inspection route |
| Hollow tube roll | Lower mass and long span | Shell ovalization, local denting or collapse | Wall map, seam/end-head design and structural analysis |
| Fabricated roll | Custom internal structure | Weld residual stress and discontinuous stiffness | Weld map, ribs, end-head interfaces and NDT |
| Coated roll | Final functional surface present | Coating damage or debonding | Coating strain/contact limits and post-check |
The Thin-Wall Tube Straightening Without Collapse page explains why centerline correction and cross-section preservation must be controlled together on hollow parts. A hollow roll adds journals, end heads and a functional barrel, so it still needs its own recipe.
Straightening vs Roll Grinding
Roll grinding and straightening are complementary but different operations.
Grinding Can Address
- barrel diameter and profile;
- crown or taper;
- surface finish and texture preparation;
- limited runout/eccentricity through stock removal;
- local wear within the available grinding allowance.
Straightening Can Potentially Address
- global bend of the shaft/roll body;
- journal-axis relationship;
- excessive eccentricity that would consume too much grinding stock;
- intermediate geometry before final grinding.
Neither Process Alone Proves
- freedom from cracks or harmful indications;
- correct internal wall/channel geometry;
- coating adhesion;
- acceptable dynamic balance;
- operating thermal shape or product quality.
Herkules integrates geometry measurement with roll grinding and inspection. That supports a process sequence in which geometry, stock and surface are coordinated. It does not justify assuming that grinding can safely remove every bent-axis condition.
Straightening vs Balancing
Schenck lists high- and low-speed rollers for paper and film production as balancing applications and supports rotors on their own journals or other application-specific bearings. Balancing handles mass-axis error; it does not make a bent roll geometrically straight.
| Stav | Geometry Result | Balance Result | Correct Route |
|---|---|---|---|
| Bent journal/barrel axis | Runout or axis relation fails | May also generate vibration | Correct geometry within approved limits, then rebalance |
| Straight but mass-unbalanced roll | Geometry passes | Unbalance fails | Balance in defined planes |
| Barrel profile error | Diameter/crown map fails | Balance may pass | Regrind or machine the profile |
| Thermal bow | Cold check may pass | Operating vibration can change | Thermal/operating-state investigation |
| Local journal form error | Journal geometry fails | Support signal may be unstable | Repair/machine/reject; do not treat as global bend |
If a roll is straightened after balancing, the final balance condition must be reverified. If mass is removed during regrinding, balance also requires review.
Closed-Loop Roller Shaft Straightening Process
1. Identify the Roll
Vyberte ověřený recept z čísla dílu, konstrukce, materiál, povlak, profil, process stage and drawing revision.
2. Zkontrolujte a vyčistěte
Check journals, barrel, povlak, svary, transitions, internal passages and known repair areas. Remove contamination from approved datum and contact surfaces.
3. Load on Approved Supports
Confirm orientation, journal seating and lifting points without dragging the barrel or finished journals.
4. Measure Journals and Barrel
Rotate the roll and reconstruct journal-axis behavior. Measure barrel diameter/profile and runout with drawing-based axial stations and feature masks.
5. Classify the Deviation
Separate correctable global bend from journal form error, barrel profile error, shell ovality, coating damage, weld distortion, thermal bow or mass unbalance.
6. Select a Safe Correction Span
Use only approved process lands or exposed shaft zones. Confirm the load path does not cross a fragile shell, povlak, shoulder or internal feature.
7. Použijte řízenou korekci
Use validated support span, force/displacement limits and springback model. Stop on abnormal stiffness, slip or sensor behavior.
8. Fully Release and Remeasure
Judge only the unloaded roll. Recheck journals, barrel runout and full profile because one correction can change multiple characteristics.
9. Inspect and Route
Perform required surface, crack, povlak, weld or internal checks. Route the roll to final grinding, povlak, balancing or engineering review.
10. Záznam a vyložení
Store identity, revize receptury, mapy před/po, correction coordinates, force-displacement curves, alarmy a dispozice, když je vyžadována sledovatelnost.
Navrhovaná konfigurace buňky
A project-specific cell may include:
- heavy electromechanical or hydraulic press sized from sample force data;
- moving gantry or adjustable workpiece table;
- journal rollers, centers or custom bearing-equivalent supports;
- traveling barrel measurement and separate journal sensors;
- interchangeable broad radiused shoes and protected pads;
- slow rotation and angular indexing;
- cranes, manipulators or conveyors matched to roll mass;
- platnost, displacement and recipe control;
- released-state remeasurement;
- interfaces to grinding, balancing and roll-shop records.
The architecture for a rough forged work roll is not automatically suitable for a finished coated web-handling roll.
Vzorový plán testování a akceptace
Representative samples should cover:
- smallest and largest barrel and journal diameters;
- minimum and maximum length and mass;
- solid, dutý, cast and fabricated constructions;
- materiál, heat treatment and hardness states;
- straight, crowned, tapered and textured profiles;
- rough, ground and coated surface conditions;
- expected incoming bend magnitude and direction;
- journal and barrel measurement correlation;
- approved and prohibited correction zones;
- cold and stabilized temperature conditions;
- grinding-stock and final-profile requirements;
- balance verification and customer gauge correlation;
- povrch, povlak, weld and crack inspection after correction.
Použijte Příručka pro testování a přijímání vzorků narovnání to separate feasibility, TUK, SAT and production capability. Do not convert a competitor’s roll-grinder or balancing-machine rating into a straightening guarantee.
Data Required for a Technical Proposal
Uveďte prosím:
- roll and journal drawings with revisions;
- roll function and application;
- solid, dutý, cast or fabricated construction;
- materiál, tepelné zpracování, hardness and coating;
- barrel profile, crown, kužel, texture and surface requirements;
- délka, mass, barrel diameter and journal dimensions;
- manufacturing/service stage at straightening;
- příchozí ohyb, runout and profile maps;
- drawing datums and customer measurement method;
- approved support and press zones;
- internal channels, svary, interfaces and prohibited regions;
- grinding stock and downstream process sequence;
- balancing planes and verification method;
- inspekce, traceability and report requirements;
- representative samples for trials.
Často kladené otázky
Can a Finished Roll Barrel Be Used as the Press Surface?
Do not assume so. Finished profile, povlak, texture and surface integrity are functional. The default solution uses approved rough process lands or exposed shaft spans unless the roll designer validates a protected barrel-contact method.
Can Grinding Remove a Bent Roll Condition?
Grinding can correct profile and limited eccentricity within the available stock. It may not restore the required journal-to-barrel axis relationship without excessive stock removal. Measure the complete geometry first.
Can a Hollow Roll Be Straightened Like a Solid Roll?
Žádný. Shell thickness, seams, end heads, ribs and internal channels change stiffness and collapse risk. The load path requires a separate structural and sample-test review.
Should the Roll Be Balanced Before or After Straightening?
Final balance should follow the last operation that materially changes geometry or mass. A roll straightened or reground after balancing requires balance verification.
Does Low Runout Prove the Barrel Profile Is Correct?
Žádný. A roll can show low rotational runout and still have the wrong crown, kužel, roundness or waviness. Profile and axis relationship must be evaluated separately.
Build the Solution Around the Real Roll
We develop industrial roller shaft straightening solutions around the actual roll construction, výrobní fázi, journal datum, barrel profile, protected surface, safe load path and downstream grinding/balancing route. The result may be a heavy rough-roll cell or a precision protected-shaft station, but the machine selection follows evidence from drawings and sample trials.
Send the roll drawing, konstrukce, materiál/nátěr, incoming geometry, grinding allowance and balancing method. We can then define the measurement strategy, tooling map, correction envelope, sample matrix and traceable acceptance plan for your industrial roller application.
