We have completed sample testing for a client from South Korea: stepped medical drill bits held to a 0.05 keperluan kelurusan mm. This article is the engineering record of that trial – what the workpiece demanded, which decisions carried the result, and how the number was verified.
Cabaran yang Disampaikan oleh Bit Perubatan

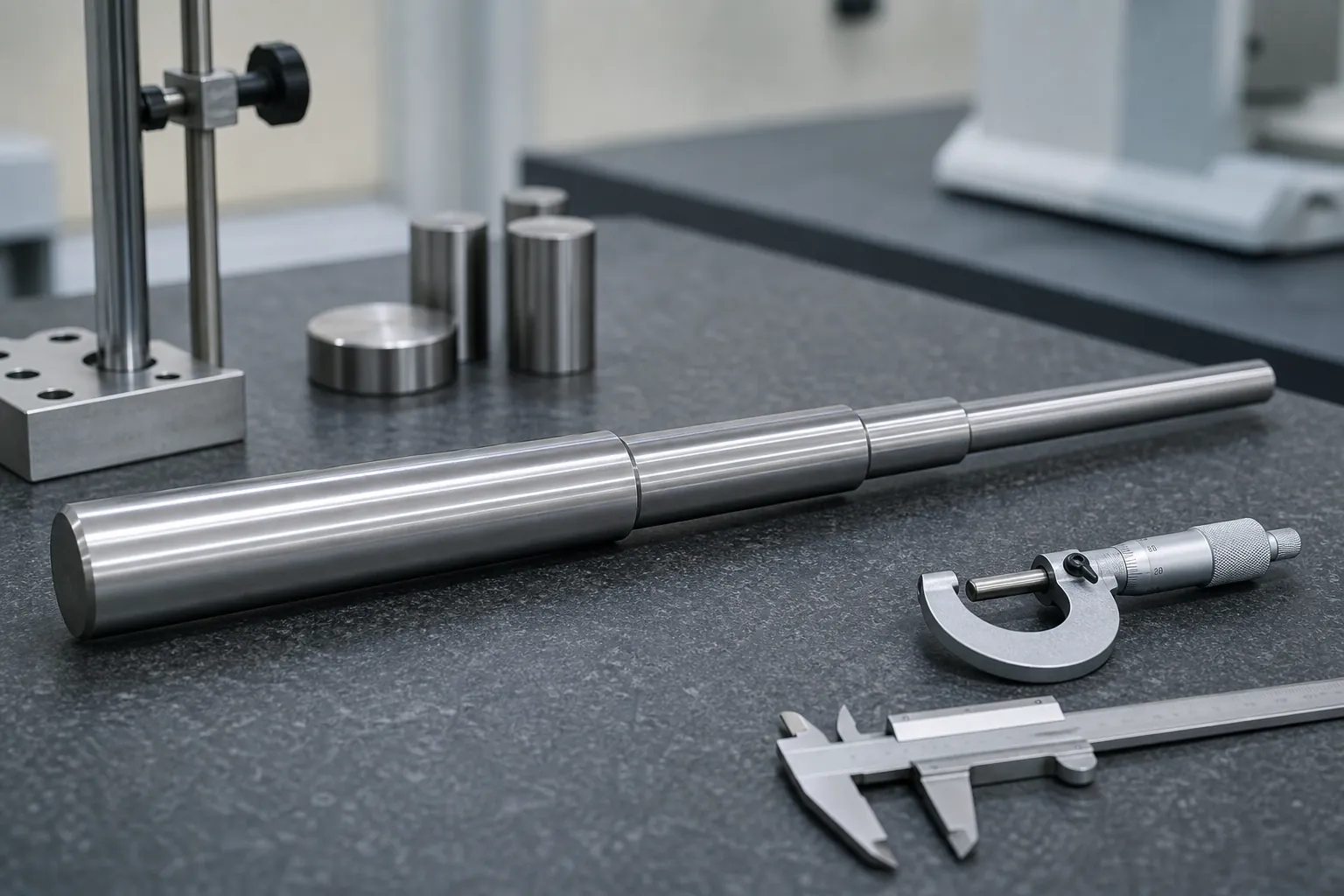

Projek ini melibatkan pengeluaran bit perubatan khusus. Komponen ini mempunyai set spesifikasi unik yang menimbulkan cabaran besar kepada jentera dan pasukan teknikal kami. Dimensi bahan kerja adalah tepat 7.9*230, dan ia menampilkan diameter batang yang meruncing 7.9 – 6.9 – 5.9, dengan 3 langkah-langkah yang berbeza sepanjang panjangnya. Keperluan yang rumit dan tepat itu menuntut tahap ketepatan dan ketepatan tertinggi dalam proses pembuatan kami.
Pengilangan komponen perubatan bukanlah sesuatu yang mudah. Sebarang penyimpangan daripada spesifikasi yang diperlukan berpotensi membawa akibat yang serius, terutamanya dalam bidang perubatan di mana keselamatan dan kebolehpercayaan adalah amat penting. Pasukan kami baik-baik saja – menyedari betapa beratnya tugasan yang sedang dijalankan. Kami tahu bahawa kami perlu menarik diri untuk memastikan produk akhir memenuhi standard kualiti ketat pelanggan.
Engineering Review: Why a Stepped Medical Drill Is Hard to Straighten
Reading this project as engineers rather than storytellers, the workpiece specification explains the difficulty on its face. A 230 mm length stepping down through three diameters is not one slender rod but three slender rods joined in series, each with different stiffness. Correction force applied at one diameter produces different deflection per unit force at each step, the bend peak tends to sit near the stiffness transitions rather than at mid-length, and any measurement that treats the part as a uniform shaft misreads the geometry it is supposed to control. On top of the section problem, medical tooling acceptance is unforgiving: at a 0.05 keperluan kelurusan mm, the measurement method itself becomes a first-order participant, and the part’s function — a cutting instrument rotating predictably — leaves little room for the marks or residual distortion that a careless correction route would trade away for geometry.
Datum Selection Decides the Project Before the First Press
On a stepped shaft, which features define the measurement reference is not a detail — it is the project. Centering on the end center holes references the axis the part will rotate about in service; referencing the largest finished diameter makes the biggest section the anchor and reads the smaller steps against it; referencing a functional flank or flute zone answers what the tool actually needs straight, but demands feature-aware measurement. Each choice gives different numbers on the same part, so it must be agreed with the customer before trials, not discovered at acceptance. The framework for exactly this decision — including the reseating checks that prove the datum is being realized repeatably — is laid out for stepped shaft measuring datum selection. For the sample test that then validates the correction route against that datum, the evidence rules in ujian sampel meluruskan dan penerimaan apply unchanged to medical tooling.
Step transitions deserve their own respect in the correction plan. The change of section concentrates stress at the shoulder, so correction strokes are planned to avoid loading a shoulder in bending where an alternative press location exists, and the flank surfaces of a cutting tool are treated as protected zones in the same discipline described for gun drill and deep-hole drill straightening — the closest industrial cousin of this workpiece family.
How the Trial Was Executed
The trial work concentrated on two things: the correction plan for a 0.05 mm tolerance, and inspection between stages. Jawatan sokongan, press points and stroke settings were fixed and recorded before the first correction, because the tolerance left no room for improvised strokes. Intermediate inspections after each stage caught deviations while they were still correctable, instead of inspecting defects in afterwards.
The Result: 0.05 mm as Required
Kelurusan bahan kerja selepas meluruskan reached 0.05 mm, on the mark of the client’s requirement. How that number was measured is documented in the verification section below.
The client expressed satisfaction with the results and interest in future collaboration. The transferable engineering lessons are summarized in the final section of this article.
Memandang ke Hadapan
This case is one sample lot on one workpiece family; the sections above record what was measured and what carried the result. The next project starts from the drawing and its tolerance callout, not from this narrative.
How a Result Like This Is Verified Rather Than Declared
A straightness result at the 0.05 mm level is a joint property of the part and the measurement system, so the verification chain is what makes the number meaningful. The chain that supports a claim of this class runs: an agreed datum and support condition, written into the inspection instruction; a gauge whose repeatability on this part family has been demonstrated — because at tight tolerances the gauge’s own scatter is a visible fraction of the limit, the discipline of tolok R&R untuk meluruskan garisan is not optional; released-state measurement after correction force is fully removed, per loaded versus released practice; and correlation to the customer’s own reference method on matched parts, so both sides of the shipment read the same part the same way. Within that chain, a supplier’s internal reading and the customer’s acceptance gauge agreeing is the result — the individual number on either instrument alone is only an interim.
What Transfers From This Case to Other Workpieces
The specific workpiece belongs to one client, but the engineering pattern repeats across families. Pertama: on stepped or tapered slender parts, build the correction plan around the stiffness map, not the single worst reading. Kedua: fix the datum definition with the customer before any trial stroke, and prove its repeatability with reseating checks. Third: treat functional surfaces — flutes, memotong tepi, finishing zones — as protected zones with explicit contact rules, in the discipline shared with stepped medical drill straightening dan small-diameter medical drill applications. Fourth: let the acceptance evidence — released-state measurement on the agreed gauge, with rework limits and disposition defined in advance — be the arbiter, not the optimism of the production floor. Parts that follow those four rules converge in fewer strokes and survive audit; parts that skip them consume rework budgets learning the same lessons again.
Soalan Lazim
Why do stepped shafts bend near the diameter transitions?
Because stiffness changes abruptly at each shoulder. Stress from handling, heat treatment and prior machining concentrates where the section changes, and the transition acts as a hinge under any later load. Correction plans for stepped parts therefore map the shoulders explicitly and place press points with the stiffness map in view, rather than assuming a uniform rod.
Adakah 0.05 mm straightness limited by the machine or the measurement?
At that level, both matter and the measurement usually dominates the conversation. The gauge’s own repeatability is a visible fraction of the tolerance, so the datum, support condition and gauge capability must be demonstrated before any correction result can be interpreted. This is why tight-tolerance projects front-load the measurement work.
Can flute zones be used as contact points during correction?
Generally not. Flutes and cutting edges are functional surfaces, and contact there risks edge damage that no straightness gain justifies. Correct practice places supports and press contact on the plain shank or agreed non-functional zones, with tooling geometry that spreads the load — the contact-zone discipline shared across tool straightening applications.
