Raddrizzamento di tubi a parete sottile senza collasso

Thin-wall tubes can be bent, oval, locally dented or twisted at the same time. A process that improves the tube centerline can still fail if it collapses the section, wrinkles the wall, marks the surface or damages a weld seam.

A thin-wall tube straightening solution must therefore control both global geometry and local cross-section integrity. It begins with the drawing, tube construction and manufacturing stage—not with a generic press-force or roller setting.

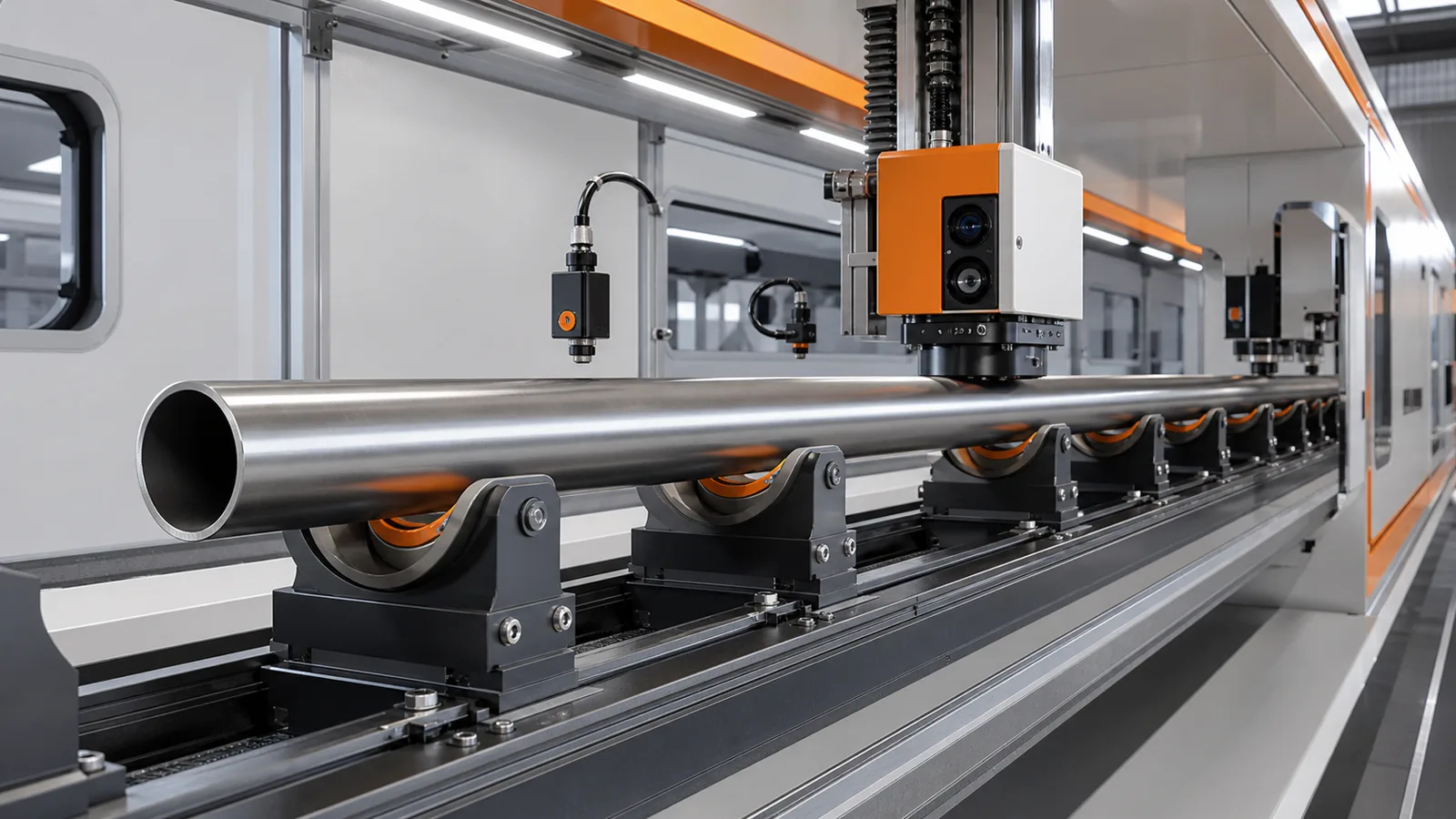

Thin-wall tube straightening line engineering concept illustration

Questa è un'illustrazione del concetto di ingegneria, non una fotografia del sito del cliente. Supporti effettivi, sensors and correction tooling depend on tube diameter, spessore della parete, materiale, section and sample tests.

Why Thin-Wall Tubes Are Different

Tube PropertyRischio di raddrizzamentoEngineering Response
Hollow sectionExternal correction can flatten or collapse the tubeControl contact geometry, pressure and internal support need
Small wall thickness relative to diameterLocal buckling and wrinkling can occur before useful correctionValidate strain and support span on worst-case samples
Existing ovalityRotation measurement can confuse form error with bendMeasure centerline and section shape separately
Welded seamSeam stiffness and damage risk can vary by angular positionDetect/index seam and define protected sectors
Finished outer surfaceRollers or press tools can create dents and witness marksApprove contact material, larghezza, cleanliness and surface criteria
Long flexible lengthSag changes the measured curveCongelare l'intervallo di supporto, orientamento e trattamento dell'abbassamento
Bent/tapered/stepped tubeStraight rotation and uniform tooling may not applyUse section-specific supports and station maps
Open endsEnd sections deform more easilyDefine minimum usable end distance and end support

The project should never use “straightness achieved” as the only success criterion. Cross-section and surface condition must remain inside the agreed limits.

Separate the Defects Before Selecting a Method

Centerline Bend

The tube axis or centerline deviates along its length. This is the primary target of ordinary bending straightening.

Ovality and Local Flattening

The cross-section is no longer sufficiently round. Ovality can pre-exist, arise from clamping or be created by straightening contact.

Local Dent or Collapse

A concentrated load produces a local inward deformation. Improving centerline bend does not automatically remove this damage.

Wrinkling or Buckling

The compression side of a thin wall can form waves or a local buckle when correction strain is too high or insufficiently supported.

Intrecciare

Round tubes may hide twist unless they contain features, cuciture, holes or attached brackets. Rectangular and shaped tubes require explicit torsion measurement and a different correction strategy.

Weld Distortion

Longitudinal seams, end welds or attached fittings can introduce asymmetric deformation and local strength differences. Welded assemblies should not be treated as uniform raw tube.

Freeze Tube Construction and Process Stage

The solution must identify whether the workpiece is:

  • seamless or longitudinally welded;
  • girare, oval, piazza, rectangular or another profile;
  • straight raw tube, cut-to-length blank or formed part;
  • annealed, trattato termicamente, rivestito, polished or otherwise finished;
  • empty, fitted with internal components or part of a welded assembly;
  • before or after machining, flessione, welding or surface treatment.

Straightening a raw tube before finishing has different surface and allowance rules from correcting a polished automotive tube or a welded cooling manifold. Later processing can reintroduce distortion, so the route may require more than one controlled geometry check.

Define Global and Local Acceptance Together

CaratteristicaWhat It ControlsWhy It Must Be Separate
Axis/centerline straightnessGlobal tube pathDoes not prove the cross-section stayed round
Circular/total runoutRotational variation relative to a datumIncludes reference and section-form effects
Diametro esternoLocal sizeCan change during flattening or expansion
Ovality/roundnessCross-section shapeDirect collapse indicator for round tubes
Spessore della pareteSection strength and forming responseMay vary around welded or drawn tube
Condizioni superficialiAmmaccature, graffi, coating or cosmetic marksIndependent of centerline result
Seam conditionWeld integrity and locationCan control orientation and correction limits
IntrecciareAngular change along shaped/featured tubeNot captured by one radial probe

The drawing and customer gauge must define stations, dato, condizione di supporto, filters and decision rules. Revisione Rettilineità dell'albero, eccentricità e TIR before interpreting a rotating indicator signal as tube straightness.

Measure Centerline and Ovality Separately

A single contact probe on the outside diameter cannot always distinguish a bent but round tube from a straight but oval tube. Multiple angular readings, opposing sensors, diameter scans or a suitable non-contact system may be required.

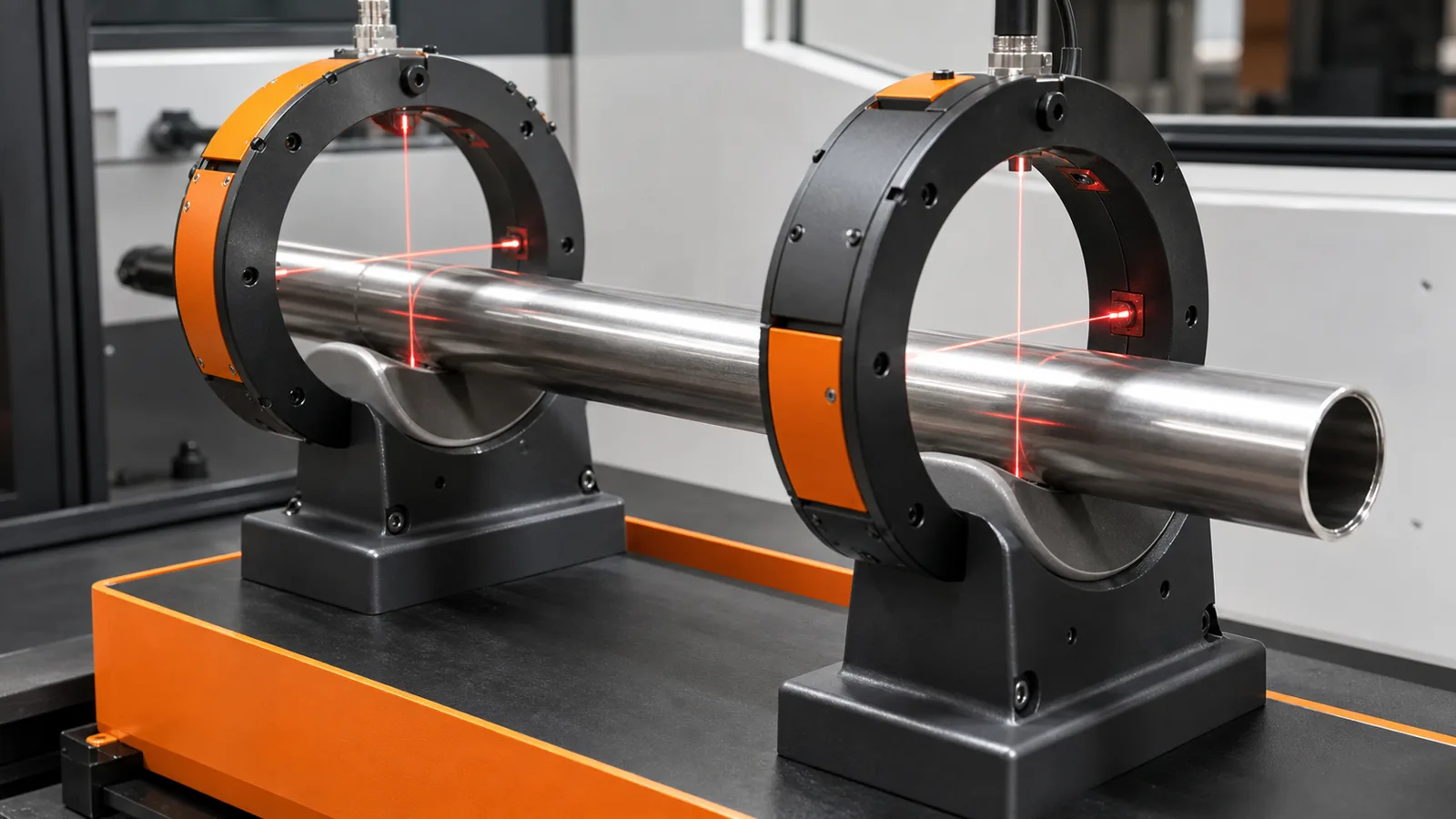

Thin-wall tube ovality measurement engineering concept illustration

This engineering concept illustration shows non-contact centerline and diameter measurement. It does not prescribe optical sensors for every tube.

Measurement ElementProject Definition
Datum/referenceEnds, riviste, fittings, mathematical axis or customer fixture
Axial stationsGlobal curve points plus high-risk local sections
Angular coverageEnough directions to separate bend and ovality
Support planNumero, arco, height and contact pressure
Seam indexingSeam angle at measurement and correction stations
Probe methodContact force or non-contact range/resolution
End exclusionMinimum distance from unsupported/open ends
Released conditionMeasurement only after external/internal correction load is removed

For non-round tube, the system may need multiple faces, edges or section-specific coordinates rather than simple rotational runout.

Support the Tube Without Creating the Defect

Supports must hold and move the tube while keeping contact pressure below the validated local deformation limit.

Important variables include:

  • saddle radius and conformity to the actual OD;
  • roller width and edge radius;
  • sleeve/pad material and embedded-particle risk;
  • support span and intermediate support positions;
  • tube rotation or axial-feed force;
  • clamping pressure and grip length;
  • open-end support and minimum contact distance;
  • weld-seam angle relative to contacts;
  • cleaning and tooling-inspection frequency.

A soft pad can still dent a tube if the contact area is too small or contamination is trapped beneath it. Tooling must be validated on the minimum wall thickness and weakest included material condition.

Stiratura a pressione vs Stiratura a rullo

ItinerarioStrong Starting FitMain Thin-Wall Risk
Localized press straighteningDiscrete bend zones, feature-rich parts, low/medium mixLocal flattening, denting and compression-side wrinkle
Multi-roll/continuous straighteningLong uniform tubes with distributed curvatureRepeated contact, ovality growth, end effects and surface marking
Moving-frame correctionLong tubes where moving the part is difficultSupport transitions and station correlation
Internal-support-assisted correctionHigh collapse risk at known local zonesMandrel insertion, adatto, friction and removal
Hybrid processPre-straighten stock then targeted final correctionClear acceptance and responsibility at each stage

Utilizzo Stiratura a pressione vs Stiratura a rullo for the general method decision. Thin-wall tube selection adds section-stability and surface constraints.

Internal Support: Option, Not Default

An internal mandrel, expandable support, plug or local backing device can reduce collapse at the correction zone. It also introduces new risks.

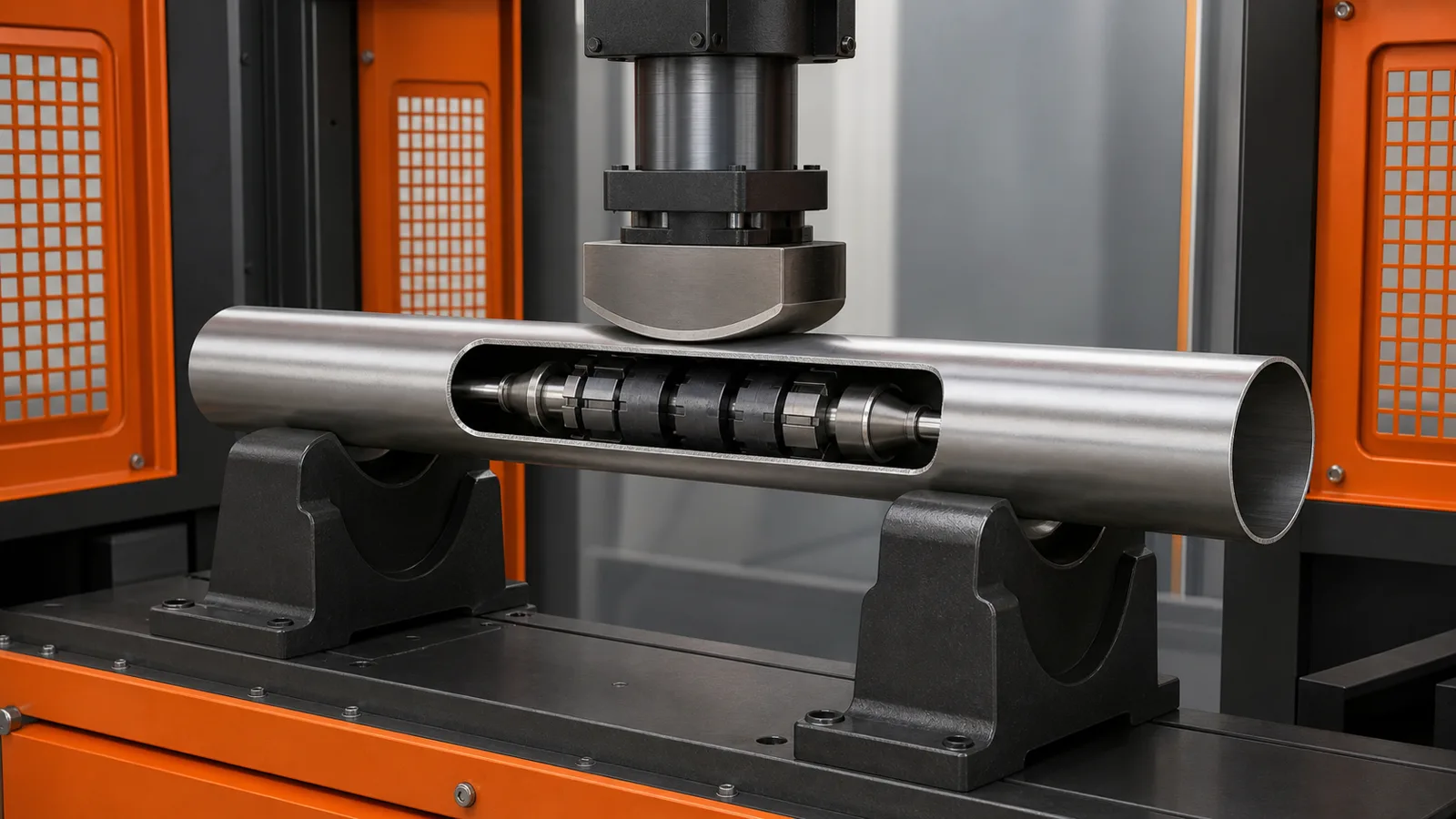

Thin-wall tube internal support correction engineering concept illustration

This cutaway engineering concept illustrates one possible internal-support arrangement. It is not a universal production design.

Internal-Support QuestionPerché è importante
Can the device enter and reach the correction zone?Bends, lunghezza, fittings and closed ends may block access
What is the support clearance?Too loose gives little support; too tight can score or jam
How is it positioned?The internal support must align with the external load zone
Is it fixed or expandable?Expansion force can itself change diameter/ovality
What is the contact material?Internal surface scratches or contamination may be unacceptable
How is it removed?Ritorno elastico, burrs or deformation can trap the device
Can several stations be corrected?Moving the support affects cycle and control complexity
How is internal condition inspected?Damage may not be visible from outside

Alternative approaches can include broader external tooling, lower incremental correction, hydro/pneumatic support where appropriate, or moving the straightening operation to an earlier process stage. Each requires its own safety and validation plan.

Weld Seam and Feature Indexing

For welded tubes, seam position can affect stiffness, measurement and damage risk. The recipe should define whether the seam is:

  • detected automatically or oriented manually;
  • permitted under a support or press tool;
  • excluded from high-strain correction sectors;
  • measured for local profile or integrity;
  • tracked through the entire cycle.

Fori, slot, beads, parentesi, flares, swages and end fittings also change local stiffness. An ordinary OD sensor or press tool should not cross these features without a defined method.

Correzione controllata e ritorno elastico

Localized correction should use a validated span and broad conforming contacts. The machine applies only enough controlled over-bend to obtain permanent correction after release.

The recipe should bound:

  • support and correction coordinates;
  • seam/feature angular orientation;
  • forza massima, stroke and loaded displacement;
  • maximum section deformation during loading;
  • correction increment and attempt count;
  • reverse-correction or oscillation rules;
  • internal-support state and position;
  • post-release straightness, ovality and surface checks.

Final acceptance must be measured after the external load and any internal expansion force are fully released. Vedere Compensazione del ritorno elastico nel raddrizzamento dell'albero for bounded iteration and stop logic.

A Defensible Automatic Cycle

  1. Identify tube family, disegno, construction and process-stage recipe.
  2. Confirm diameter/section, wall range, material and seam/feature condition.
  3. Clean the tube and inspect external/internal support tooling.
  4. Load on broad validated supports and locate the tube axially.
  5. Detect or index seam and prohibited features where required.
  6. Measure centerline and cross-section characteristics at agreed stations.
  7. Separate sag, ovality and local dents from correctable global bend.
  8. Select the approved correction method, span and optional internal support.
  9. Apply bounded correction while monitoring force/stroke and section risk.
  10. Fully release external/internal loads and restore the measurement condition.
  11. Remeasure centerline, ovality/section and surface/seam criteria.
  12. Record results and route to OK, recheck, secondary operation or NOK.

Girare, Rectangular and Formed Thin-Wall Tubes

Tube FamilyAdditional Control
Round seamless tubeBend/ovality separation and end collapse
Longitudinally welded round tubeSeam indexing and integrity
Square/rectangular tubeFace flatness, corner radii, twist and wall buckling
Oval/formed sectionSection-specific supports and measurement model
Bent tube assembly3D datum, tangent/angle and local bend geometry
Tube with fittingsGrip/feature protection and access for internal support
Multi-channel/extruded tubeInternal webs, torsion and local crush behavior
Coated/polished tubeSurface contact and cosmetic standard

These families should not share an unvalidated universal recipe.

Machine and Data Modules

ModuloProject Definition
Loading/transferManuale, trasportatore, portale o robot; anti-sag handling
Identificazione della parteSezione, wall/material family and wrong-recipe prevention
Seam/feature detectionCamera, sensor, fixture or manual index
Support lineSaddle/roller geometry, arco, setup and wear monitoring
MisurazioneCenterline, diameter/ovality, twist and local-section stations
CorrezionePremere, rulli, moving frame or hybrid process
Internal supportType, posizionamento, expansion, insertion and removal
Surface/seam inspectionExternal and internal criteria after correction
TracciabilitàInitial map, cronologia delle correzioni, final map and reject reason
Quality interfaceCustomer gauge correlation and reference-master checks

Sample Test and Acceptance Matrix

Test GroupRepresentative SamplesEvidence Required
Diameter/wall rangeLargest diameter with thinnest wall plus boundariesCollapse and tooling envelope
Material/conditionSoftest, strongest and finished statesRitorno elastico, wrinkle and surface response
Welded/seam variantsSeam angles and weld batchesIndexing and integrity result
Length/bend rangeIl più breve/il più lungo, good/borderline/worst incomingSupporto, sag and correction map
Sezione trasversaleRound plus every approved shaped familyDedicated gauge/tooling result
End/featuresOpen ends, buchi, fittings and formed zonesExclusion and local support rules
Internal supportInsertion/position/removal extremesNo jam or internal damage
Correlazione di calibroSame parts on machine and customer methodOffset, repeatability and decision agreement

Usa il Guida al test e all'accettazione dei campioni di raddrizzamento to define feasibility, FAT and SAT evidence.

Information Required for a Thin-Wall Tube Proposal

Si prega di fornire:

  • complete tube/assembly drawing and revision;
  • seamless/welded construction and seam specification;
  • materiale, temper/heat treatment and process stage;
  • round or shaped section, OD/width/height, wall thickness and length range;
  • curva, rettilineità, esaurire, ovalità, diametro, twist and surface requirements;
  • datum/reference, measuring stations and customer fixture;
  • incoming bend/ovality/dent distribution and representative rejects;
  • buchi, slot, saldature, fittings, bends, flares and prohibited zones;
  • approved external and internal contact surfaces;
  • cosmetic, rivestimento, seam and internal-surface acceptance criteria;
  • access and clearance available for internal support;
  • rendimento target, metodo di caricamento, conversione e tracciabilità;
  • bene rappresentativo, borderline and NOK samples.

Our engineering team can then define the support model, measurement architecture, metodo di correzione, optional internal tooling and validation matrix. Precisione finale, cycle time and section integrity must be confirmed on the actual tube family—not copied from a generic tube-straightening claim.

Domande frequenti

Can a standard bar straightener be used for thin-wall tube?

Not without validation. A tube is hollow and can collapse, ovalize or wrinkle under contact loads that a solid bar tolerates.

Is straightness enough to accept the tube?

NO. Ovalità, diametro, local dents, condizione della superficie, seam integrity and twist may also control acceptance.

Does internal support always prevent collapse?

NO. Clearance, posizione, expansion, contact material and removal all matter. The support can introduce its own damage or dimensional change.

Can an ordinary contact probe measure tube bend?

It may combine bend, ovalità, surface form and support effects. The project must define enough angular/station information to separate them or use another suitable method.

Should the weld seam face away from the press?

There is no universal orientation rule. Seam design, materiale, weld condition and load path must be reviewed and tested before the recipe fixes an angle.

Which is better for thin-wall tube: rollers or press straightening?

It depends on section, curvature distribution, surface stage and collapse risk. Rollers suit some uniform long tubes; localized press correction suits some discrete defects. Both require tube-specific tooling.

Is final geometry checked with the internal support still expanded?

NO. Final acceptance should use the released tube in the agreed measurement condition unless the drawing explicitly defines another state.

Can round and rectangular thin-wall tubes share one setup?

Non automaticamente. Rectangular tubes add face, corner and torsion behavior and need section-specific supports, measurement and correction tools.

Sommario
Scorri fino all'inizio
